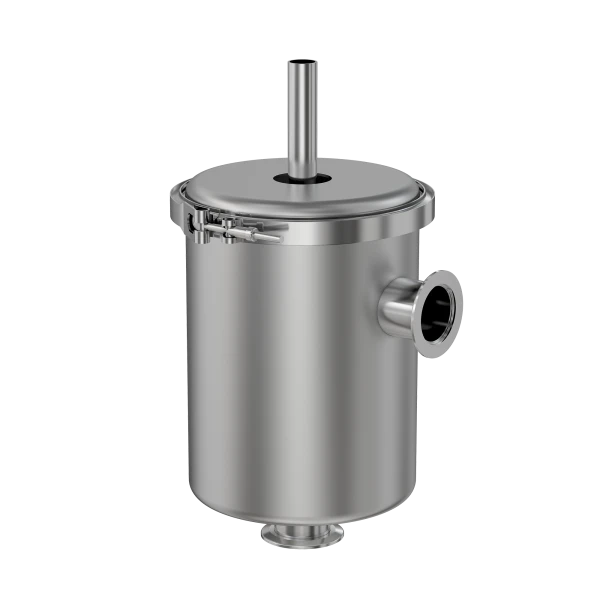

In-Line LN2 Trap

Part Number: FTN-4-1502-NWB
Quantity:


Features
  • Call us at 800-824-4166 to learn more about foreline contamination management
  • Choose a trap for particles, moisture, condensable chemicals or any combination thereof
  • Wide range of trap styles and techniques
NW-40 In-Line Single-Tube Liquid Nitrogen Trap, 4" Body
Technical Resources
Specifications
  • Trap Type: Liquid Nitrogen Trap
  • Fill and Vent Tubes: Single Fill / Single Vent
  • LN2 Fill/Vent: 1" OD Tube
  • Port Orientation: Straight In-Line
  • Flange Size / Type: DN 40 ISO-KF
  • Trap Body Size: 4" OD
  • Body Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 180 °C
  • Weight: 6.6 lbs
In-Line-Liquid-Nitrogen-Traps-Dia
Imperial Units
Dim A: 11.5"
Dim B: 3.70"
Dim C: 4"
Dim E: 7.30"

Replacement Parts & Accessories

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
Body O-Rings
Body O-Rings
FT-4-OR
$17.50
Quantity:
Body Clamps
FT-4-CP
$51.50
Quantity:
Body Clamps
FT-CP-B
$11.50
Quantity:
