Medium Current Feedthroughs

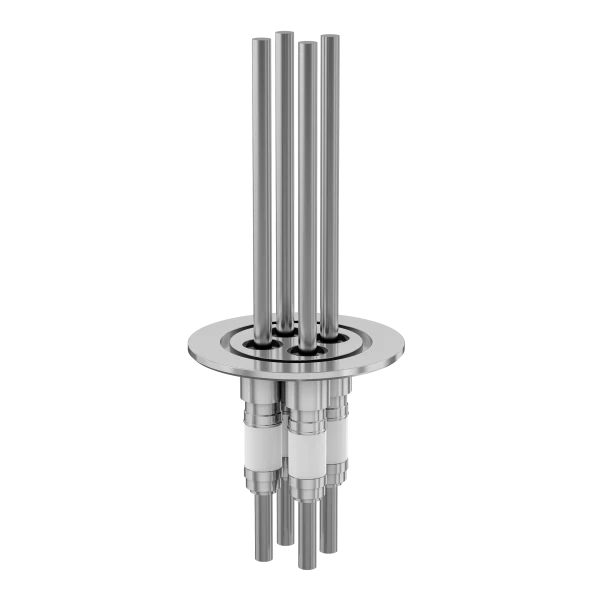

Medium current copper feedthroughs transmit either high voltage, high current or a combination of both. They are used for sample heating, in-vacuum coating, electron beam evaporation, sputtering, etc. High-purity, high strength, low-loss alumina ceramic surfaces maximize strike and creep distances.
Medium current nickel feedthroughs are similar to medium current copper feedthroughs with the exception of utilizing a nickel conductor in processes and environments which would otherwise attack copper.
Medium current nickel feedthroughs are similar to medium current copper feedthroughs with the exception of utilizing a nickel conductor in processes and environments which would otherwise attack copper.
Medium Current Feedthroughs Features
- 150 amps for copper / 56 Amps for nickel
- 5 KVDC for Copper / 12 KVDC for nickel
- Elastomer Seal -20°C to 200°C
- Metal Seal -270°C to 450°C
Medium Current Feedthrough Material Options
Nor-Cal Products’ extensive line of electrical feedthroughs are manufactured from ultra-high vacuum grade materials such as high alumina ceramic insulators, OFHC® copper and nickel conductors, and 304 stainless steel flanges. These robust ceramic to metal feedthroughs have electrical ratings for operation with one side in dry atmosphere while the opposite end is in a stable vacuum.They are used in ultra high vacuum systems with CF flanges or high vacuum systems with NW flanges. CF feedthroughs can be baked to 450°C and NWs to 204°C with maximum system pressure of 1 x 10-4 Torr. Our product line consists of the most commonly required feedthroughs for general vacuum applications. Customs designs or modified standards can readily be supplied. Liquid and liquid nitrogen feedthroughs includes the most commonly required for general, high and ultrahigh vacuum applications.
