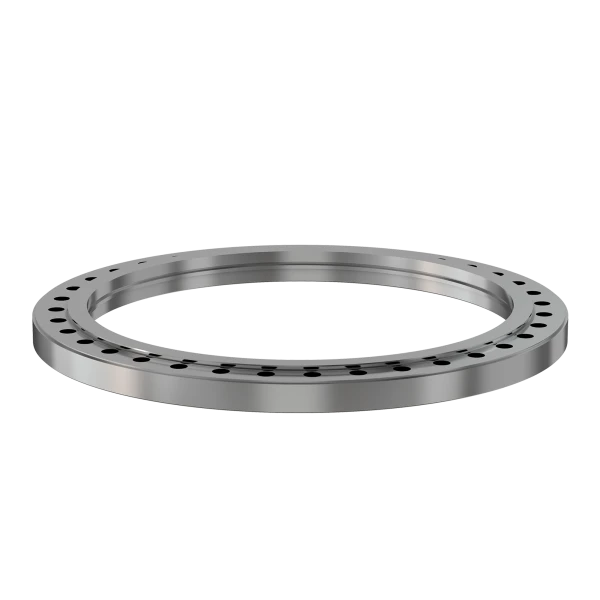

Wire Seal Bored & Blank Flanges
Pfeiffer Vacuum+Fab Solutions' wire seal flanges are designed for bell jars, custom vacuum chambers, and related systems. Standard sizes range from 12 to 27-inch nominal OD for tube sizes from 10 to 24-inch OD. A 0.080-inch thick OFHC copper wire is compressed between the two flanges to effect a robust UHV seal. Solid blanks are standard. Dished head blanks are offered as a lower-cost alternative.
Click here to contact us for more information.
Click here to contact us for more information.
Wire Seal Bored & Blank Flanges Features
- Blank flanges or bored weld rings
- One each male and female flange required for a vacuum tight connection
Pfeiffer Vacuum+Fab Solutions manufactures and provides a full line of flanges, fittings, and adapters for vacuum applications. We offer ISO-KF (NW), ISO-K, ISO-F, CF (Conflat), ASA, Wire Seal, and EVAC Chain Clamp style flanges and fittings to fit almost every application. Custom flanges are available upon request.
We specialize in manufacturing components from 304 or 316 stainless steel, with several items available in aluminum as well. Centering rings, gaskets, clamps, bolts, and other hardware components are available to complete your project. We maintain a large inventory for prompt deliveries and to meet those unexpected demands.
We specialize in manufacturing components from 304 or 316 stainless steel, with several items available in aluminum as well. Centering rings, gaskets, clamps, bolts, and other hardware components are available to complete your project. We maintain a large inventory for prompt deliveries and to meet those unexpected demands.
Standard & Custom Wire Seal Bored and Blank Flanges
Pfeiffer Vacuum+Fab Solutions’s Bored and Blank Flanges utilize the highest quality materials and are fabricated under the most stringent fabrication, design, testing and inspection processes. Pfeiffer is proud to be a trusted manufacturer of pressure vessels, including vacuum system components. Our in-house capabilities allow us to monitor each stage of the Engineering, Logistics, Manufacturing, and Quality Assurance processes to ensure your Wire Seal Bored and Blank Flanges and additional vacuum components meet or exceed established industry standards. Specific parts include but are not limited to:
- Vacuum Chambers
- Vacuum Flanges and Fittings
- Traps and Filters
- Viewports, Shutters, and Doors
- Feedthroughs
- Isolation Valves and more
Partner with Pfeiffer for High-Quality Solutions
At Pfeiffer, we deliver premium vacuum components and solutions to customers across research, industrial, and OEM industries. When you partner with us, you gain access to our extensive inventory of high-quality vacuum components, as well as:- Dedicated sales support—speak directly with a real person at 800-824-4166.
- Fast quote turnaround
- 60+ years of industry experience
- Competitive pricing and reliable service
