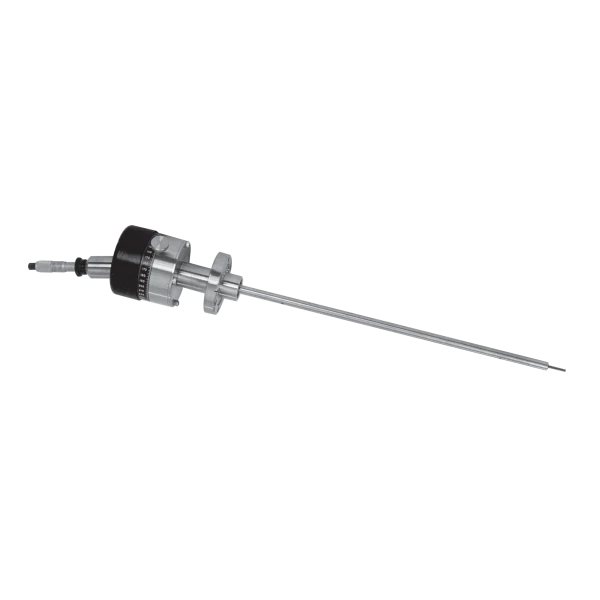

UHV Bellows Sealed
Linear rotary feedthroughs are offered in magnetically coupled, bellows sealed, and differentially pumped FKM o-ring sealed versions. These feedthroughs are normally manually actuated. Typically these feedthroughs are used for sample introduction or manipulation. This feedthrough is a stand-alone device or used when coupled with a gearbox to control polar and azimuthal rotation of a sample.
UHV Bellows Sealed Features
- 2.75” CF mounting flange
- 304 stainless steel materials, Teflon insert
- Any mounting orientation
- Maximum bakeout temperature 150°C
- Motion: 10 to 24 inch linear travel
Pfeiffer offers the researcher complimentary devices for sample transfer and positioning in ultra-high vacuum systems. Combined with our vacuum chambers, load locks, gate valves, all-metal valves, feedthroughs, viewports and roughing accessories, we can provide a complete turn-key research system. Each standard component can readily be customized to meet our customer’s specific requirements, such as sample heating and cooling, special lengths or stepper motor drivers. All of Pfeiffer’s sample transfer and manipulation devices are made from the highest quality materials and lubricants to withstand repeated UHV bakeouts.
