Custom Engineering Services

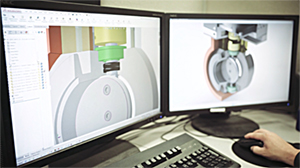

Solidworks Modeling
Custom vacuum components are required for forming connections in high vacuum and ultra-high vacuum systems. Nor-Cal Products' experienced engineering team designs a variety of custom vacuum components based on your specifications to meet your application requirements. Our in-house tooling and equipment allows for faster turnaround time, lower costs, and full manufacturing supervision at each stage of our ISO 9001:2015-Certified production process. Our prototyping capabilities give us the freedom to create chambers, tees, valves and more to meet your specific needs.  We utilize only the highest-grade materials and cutting-edge equipment to manufacture vacuum components and provide you with the highest-quality vacuum components possible.

To receive more information about Nor-Cal Products’ design and engineering expertise or to obtain a quote, please request a custom quote or contact us online.

Custom Vacuum Design And Engineering Capabilities

With over 50 years of expertise in the vacuum science industry, Nor-Cal Products has developed industry-leading design and engineering capabilities for virtually any high vacuum and UHV vacuum component. Our in-house tooling and equipment allows our team oversees production and ensure superior quality on all components, including:

Custom Vacuum Design And Engineering Services

As an indication of our commitment to quality and customer satisfaction, Nor-Cal's engineering staff thoroughly reviews each custom vacuum component for manufacturability before the production process begins. This value engineering is provided at no cost to our customers in order to provide an appropriately toleranced, cost-effective product. Questions regarding design, specifications, and testing are directed back to the customer for final approval.

For our customers who do not have drafting personnel available and require a complex assembly: we can provide complete CAD drawings for approval upon receipt of order. Nor-Cal's engineering department uses the latest versions of SolidWorks™ drafting and solid modeling software.
Nor-Cal Vacuum Prototyping Services
We have complete prototype machining capabilities along with the ability to perform pressure, conductance, and thermal characterization, plus software and electronic development and testing. We utilize our experience and capabilities to save you time and costs during the design phase for multiple components. Some previous prototyping products include:
  • Vacuum Chambers With/Without Load Locks
  • Application-Specific Foreline Traps
  • Custom Heaters
  • Custom Weldments & Flanges
  • Proprietary vacuum Assemblies & More

Vacuum Component Materials Selection

Nor-Cal Products uses only the highest-grade materials to manufacture vacuum components. Our engineers consider vapor pressure, permeability, corrosion-resistance and additional factors based on your application requirements. We offer 304 stainless steel in addition to 304L, 316L, or 316LN for more demanding applications. Flanges and baseplates are made from 304 that has been specially treated to remove impurities inherent in 300 series steels. Our standard flange material is certified to meet ASTM A-240 and has less than 0.01% sulfur to prevent sulfur stringers. Grain size is 3 to 6 per ASTM E-112. Maximum inclusion size is 2.5 per ASTM E-45.

Why Choose Nor-Cal Products?

Nor-Cal Products, Inc. is dedicated to the continual improvement of our manufactured and purchased goods through the implementation of a carefully planned quality management system. We strive to meet our primary goal of 100% customer acceptance by manufacturing defect-free parts with on-time delivery, competitive pricing, and the best possible customer service. Our strong in-house capabilities support the quality of our components and services in a variety of areas, including: Nor-Cal Products is an ISO 9001:2015 certified company.

Contact Us For a Custom Vacuum Solution to Meet Your Needs

Request a custom quote or contact us online and let us get started on creating custom vacuum components to meet your needs!
