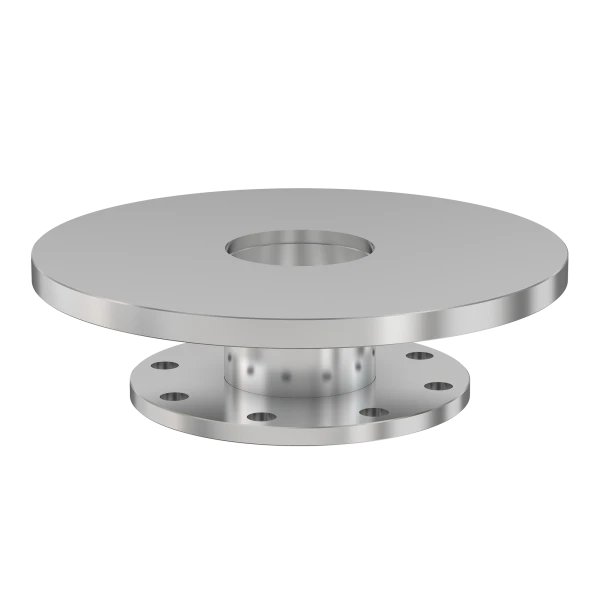

Vacuum Base Plates

Vacuum base plates utilize tightly sealed connections for stabilizing and providing a flat surface within your vacuum chamber system. Pfeiffer Vacuum Valves & Engineering supplies 304 stainless steel vacuum fixture plates in various sizes for use with PV V&E bell jars and feedthrough collars. Fully customized options are available upon request.
Contact us for more information regarding our base plates, bell jars, and feedthrough collars or to speak with a PV V&E expert. Need a custom quote? Click here or email

Vacuum Base Plates Features

  • 304 stainless material
  • Available in 12", 18" and 24" diameters
  • Glass Bead or Electropolish Finish
  • Includes one FKM O-ring

Industrial Base Plate Features

PV V&E’s base vacuum pump plates and vacuum fixture plates are manufactured from 304 stainless material for improved durability, performance, and corrosion resistance. Our sleek, lightweight base plates hold up to long-term, high-volume vacuum system demands across various industrial applications.

While standard base plates have a glass bead finish, we also offer electropolished finish options recommended for ultra-high vacuum surface science chambers that operate at pressures in the 1x10-11 Torr range. Our base plates fit a vacuum range of 1 · 10-8 mbar to 1 bar and have an impressive temperature range of 20 °C to 200 °C. All base plates include one FKM O-ring.

Vacuum Base Plates Features

  • 304 stainless material
  • Available in 12", 18" and 24" diameters
  • Glass Bead or Electropolish Finish
  • Includes one FKM O-ring

High-Quality Base Plate Specifications

Our 304 stainless steel baseplates vary depending on the size of your corresponding vacuum system components. Please consult our team for the exact capabilities and specifications of our base plates. You can view our base plate specifications below.

Available Diameters

  • 12”
  • 18”
  • 24”

Finish Options

  • Bead blast
  • Electropolished
Learn more about our chem clean and finishing processes here.

Compatable Feedthrough Collar Sizes

  • 12” OD
  • 14” OD
  • 20” OD
  • 26” OD

Base Plates for Bell Jars and Feedthrough Collars

With over 60 years of expertise in the vacuum science industry, PV V&E has remained committed to providing the highest quality vacuum components for OEMs and industrial and research end-users. We have earned a reputation for manufacturing precise tee fittings and vacuum components for many industries, including:
  • Semiconductor industry
  • Research laboratories
  • Equipment manufacturers
  • Energy and aerospace
  • Life and health sciences development

Bell Jar Features

Our bell jars are supplied with a single dovetail grooved base flange, which can mate to a feedthrough collar or baseplate. A single 4" ID glass viewport and a coordinating lifting lug are included.
