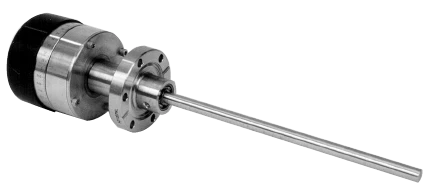

Manual Actuation for Rotary Feedthroughs
Precision rotary feedthroughs provide 360° continuous rotation and may be used to define a polar axis for a sample or probe or to actuate a mechanical device, such as a shutter, inside the vacuum chamber. Typically used for polar rotation on top of an XYZ manipulator.
Manual Actuation for Rotary Feedthroughs Features
- 1.33” CF or 2.75” CF mounting flange
- 10⁻¹⁰ torr vacuum range
- Any mounting orientation
- Custom shaft lengths available
- Maximum bakeout temperature of 200°C
- Rotary probe .25” or .375” diameter
- Speed: 5-95 RPM
- Torque: 50 oz in-1, 100 oz in.
Pfeiffer offers the researcher complimentary devices for sample transfer and positioning in ultra-high vacuum systems. Combined with our vacuum chambers, load locks, gate valves, all-metal valves, feedthroughs, viewports and roughing accessories, we can provide a complete turn-key research system. Each standard component can readily be customized to meet our customer’s specific requirements, such as sample heating and cooling, special lengths or stepper motor drivers. All of Pfeiffer’s sample transfer and manipulation devices are made from the highest quality materials and lubricants to withstand repeated UHV bakeouts.
