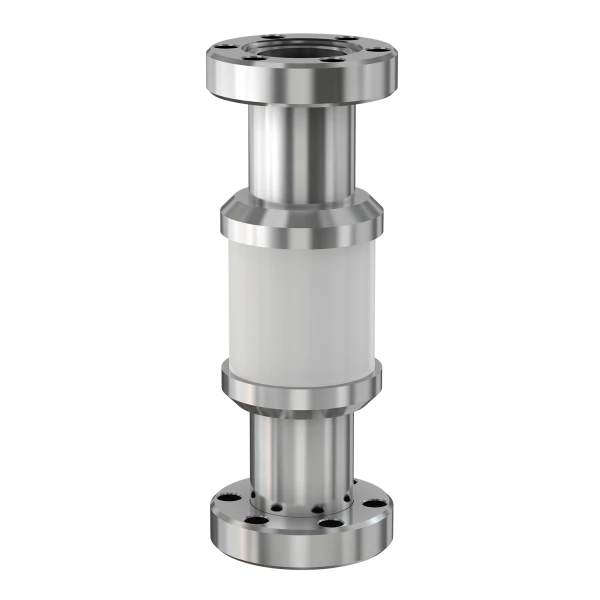

High Voltage Ceramic Break Insulators

Vacuum insulators (also known as vacuum breaks and isolators) isolate one component or system from another electrically. PV V&E uses a ceramic insulator with 95% minimum aluminum oxide content, silver brazed to two Kovar sleeves, creating a UHV-compatible insulator. The insulator is then welded to the appropriate vacuum flange..


High Voltage Ceramic Break Insulators Features

  • 304 stainless steel flanges
  • Elastomer seal to 200°C
  • Kovar sleeve and ceramic insulator
  • Maximum voltage 3KV015KV depending on size
  • Metal seal to 450°C

Standard vacuum insulators are available in two tube diameters, .75 and 1.5 inches (19.05 and 38.1mm). The .75 inch (19.05mm) size is rated up to 10KV, while the 1.5 inch (38.1mm) size is offered in two voltage ratings (3KV and 15KV). All three voltage ratings are available with either two NW (ISO-KF) flanges for high vacuum applications or one non-rotatable and rotatable CF (Conflat) flange for ultra-high vacuum applications. Other sizes, current ratings, and flange combinations are available on request.


Why Choose PV V&E for High Voltage Ceramic Break Insulators

Nor-Cal Products, Inc dba Pfeiffer Vacuum Valves & Engineering is dedicated to continually improving our manufactured and purchased goods through implementing a carefully planned quality management system. We strive to meet our goal of 100% customer acceptance by manufacturing defect-free parts with on-time delivery, competitive pricing, and the best possible customer service every time. PV V&E's large inventory of High Voltage Ceramic Break Insulators and extensive vacuum component portfolio enables us to fulfill low to high-volume product orders with a quick turnaround. Our skilled team of designers, engineers, and manufacturers provides unmatched customer service during each stage of your orders, from building a prototype to completion.
