Vacuum Surface Analysis Chambers

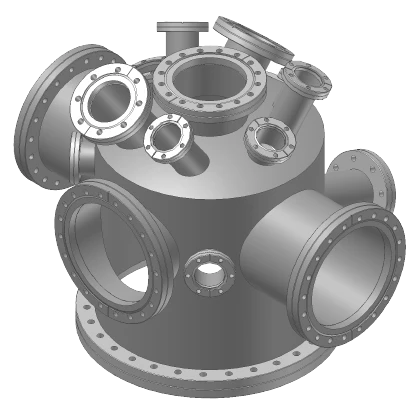

Model SAC-12 300CF & SAC-12WS Surface Analysis Chamber Models

Nor-Cal Products, Inc. dba Pfeiffer Vacuum Valves & Engineering supplies 304 stainless steel surface analysis chambers to measure, observe, and fine-tune components in a safe environment. Our SAC-12 is a standard platform vacuum chamber designed for surface science studies.

The SAC-12 is manufactured and inspected at each stage of our ISO 9001:2015-certified production process to ensure you receive the most accurate readings possible. The geometric design offers maximum flexibility for various experiments and includes 17 ports compatible with other PV V&E Components.

Spherical Vacuum Chamber Specifications

Both the SAC-12 300CF & SAC-12WS are manufactured from 304 stainless steel. Each model features 17 analysis ports and can be electropolished with additional customization options. The primary difference is that the SAC-12CF has a Base Flange Size of DN 300 CF (15” OD), while the SAC-12WS has a slightly larger Base Flange Size of 300 WS (14.62” OD).
Vacuum-fired 316L stainless steel, electropolishing, and metal seals are recommended for ultra-high vacuum surface science chambers that operate at pressures in the 1x10^-11 Torr range. Additionally, PV V&E can fabricate vacuum chambers in a range of shapes and sizes with doors, stands, water jackets, and Mumetal shields.

Surface Analysis Chamber Industries Served

At PV V&E, we supply Spherical Vacuum Chambers designed from customer specifications for university or national laboratory research projects and production quantity chambers built-to-print for equipment manufacturers. Semiconductor, thin-film deposition, and compound semiconductor processing are typical applications for our high-vacuum, O-ring sealed chambers that operate at pressures down to 1x10^-9 Torr. Industries we service include:

• Research laboratories
• Equipment manufacturers
• Energy and aerospace
• Life and health sciences development

Surface Analysis Chamber Port Components

We offer a complete line of vacuum accessories compatible with the 17 different ports our surface analysis chambers feature. Related products include:

• Feedthroughs
• Viewports, Shutters & Doors
• Manipulators
• Gauges & More

In-House Tooling for Surface Analysis Chamber Manufacturing

At Pfeiffer Vacuum V&E, we offer Spherical Vacuum Chamber manufacturing to standard specifications or built-to-print for equipment manufacturers. Our in-house tooling and equipment help reduce costs, allowing for faster turnaround time while under full manufacturing supervision at each stage of our ISO 9001:2015-certified production process.

Why Choose PV V&E?

Pfeiffer Vacuum Valves & Engineering is dedicated to continually improving our manufactured and purchased goods through a carefully planned quality management system. We strive to meet our primary goal of 100% customer acceptance by manufacturing defect-free parts with on-time delivery, competitive pricing, and the best possible customer service. Our in-house solid capabilities support the quality of our components and services in a variety of areas, including:

• Engineering Services and Design
• Logistics
• Manufacturing
• Quality Assurance
• Research and Development

Let’s Get Started!

Discover the difference of partnering with Pfeiffer Vacuum Valves & Engineering for your surface analysis chambers today. Contact us at 1-800-824-4166 or email us at pvvesales.us@pfeiffer-vacuum.com. You can also fill out our contact form.
