ISO-KF Centering Ring w/ O-Ring

Part Number: NW-40-CR-AV
Price: $10.15
Quantity:


Features
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Most common standard lengths and sizes listed
  • Many others available, including a range of 316L material and preps for metric tubing
  • Contact us at 800-824-4166 if you can't find exactly what you need
NW-40 Centering Ring (AL) w/FKM O-ring
Technical Resources
Specifications
  • Product Type: Centering Ring Assembly
  • Fits Flange Size: DN 40 ISO-KF
  • Seal Material: FKM
  • Weight: 0.018 lbs
  • Select Feature: without Spacer Ring
  • Centering Ring Material: Aluminum

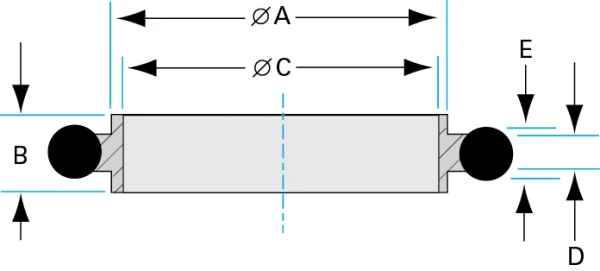

NW-Aluminum-Centering-Rings-with-O-Rings-Dia
Imperial Units
Dim A: 1.61"
Dim B: 0.310"
Dim C: 1.57"
Dim D: 0.154"
Dim E: 0.210"
