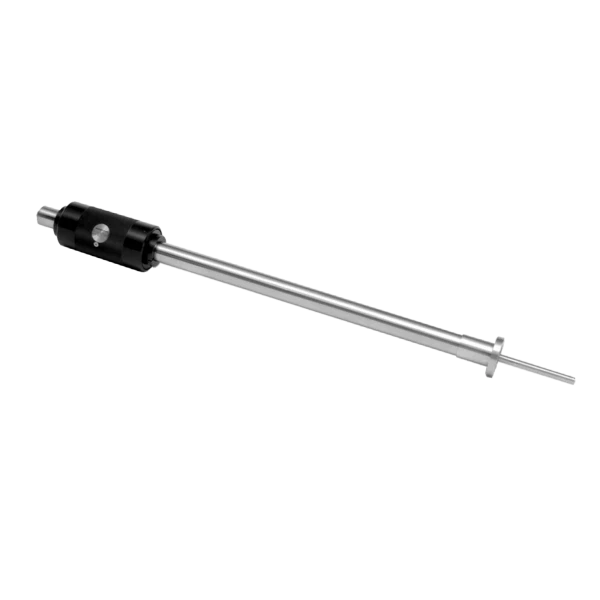

UHV Magnetically Coupled
Magnetically coupled feedthroughs offer exceptional linear/rotary motion for short to medium stroke sample introduction and transfer of light loads. The standard magnetic driver package provides more than 50 ounce-inches (1.059 Nm) of torque and four pounds of linear force. The inside traveler has no magnets, but it is made of magnetically permeable material. The coaxial design features a .75 inch (19.05mm) linear support tube with rotary bearing in the tip to guide the .25 inch (6.35mm) rotary prove. In addition to rotary motion, the design includes a linear driver, for additional axial force and tactile feedback.
UHV Magnetically Coupled Features
- 304 stainless steel materials, Teflon insert
- Additional configurations for light-touch magnet or soft-touch magnet available, depending on the feedthrough
- Horizontal operating orientation
- Linear Motion up to 48”, Rotary 360° continuous
- Maximum bakeout of 200°C with drive removed
Pfeiffer offers the researcher complimentary devices for sample transfer and positioning in ultra-high vacuum systems. Combined with our vacuum chambers, load locks, gate valves, all-metal valves, feedthroughs, viewports and roughing accessories, we can provide a complete turn-key research system. Each standard component can readily be customized to meet our customer’s specific requirements, such as sample heating and cooling, special lengths or stepper motor drivers. All of Pfeiffer’s sample transfer and manipulation devices are made from the highest quality materials and lubricants to withstand repeated UHV bakeouts.
