Vacuum Chambers & Custom Fabrication

Click to enlarge
Quality-made and fully inspected vacuum chambers and custom fabricated vacuum components are essential in creating a cohesive and high-functioning vacuum system.
Nor-Cal offers 304 stainless steel vacuum chamber and custom parts in a variety of sizes and finishes for nearly every requirement.
Find chambers and fabricated parts to meet your specific needs by searching our detailed product selection below, including:
  • Bell Jars
  • Feedthrough Collars
  • Baseplates
  • Surface Analysis Chambers
  • Custom Chambers & Manifolds

Request a quote for one of our standard or custom build-to-print vacuum chamber to meet your project requirements. Visit our Engineering Services & Design page to learn more about our full service offering or contact us online and we can likely meet your specific needs.


Vacuum Chambers & Custom Fabrication Features

  • Aluminum chambers also available
  • Choice of stainless materials including 304, 304L, 316, and 316L
  • Stand-alone chambers, or assemblies including blank-off flanges, manipulators, viewports, etc.
  • Surface treatments including glass bead finish, electropolish and chemical clean

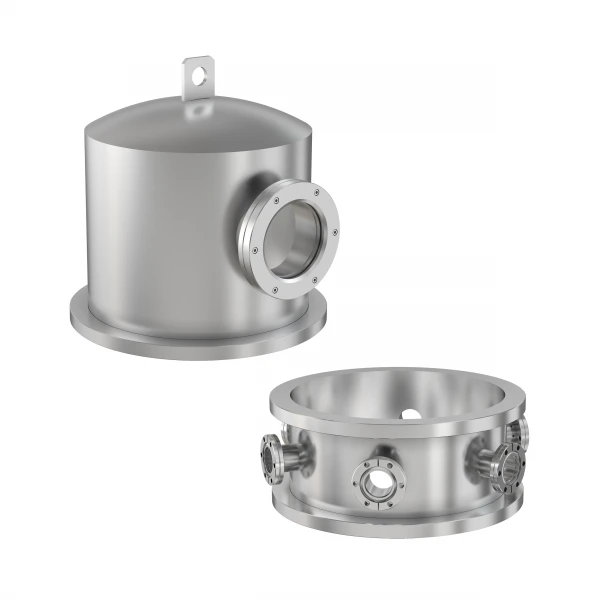

Bell Jars

Find the perfect part to meet your vacuum system needs with Nor-Cal’s single dovetail grooved base flange bell jars. Sort Nor-Cal stainless steel bell jars by part number, size, finish type and more and select the right match for your existing Nor-Cal baseplate and feedthrough collar.
Features
  • 304 stainless material
  • Available in 12", 18" and 24" diameters
  • Glass Bead or Electropolish Finish

Feedthrough Collars

Complete your vacuum chamber system with our beadblasted or electropolished feed through collars. Nor-Cal’s feedthrough collars are supplied with a single dovetail grooved base flange which can mate to both a feedthrough collar and a baseplate.
Features
  • Available in 12", 18" and 24" diameters
  • 304 stainless material
  • Includes one FKM O-ring


Base Plates

Nor-Call carries a variety of base plates designed for use in combination with our Bell Jars and Feedthrough Collars. Each baseplate is supplied with a single dovetail grooved base flange and includes one FKM O-Ring.
Features
  • 304 stainless material
  • Available in 12", 18" and 24" diameters
  • Glass Bead or Electropolish Finish


Surface Analysis Chambers

Experience maximum flexibility through 17 different ports with our SAC-12 design surface analysis chambers. Nor-Cal’s surface analysis chamber design is ideal for surface science studies and offers a range of 10_sup_-10_/sup_ Torr.
Features
  • Available in 304 stainless material
  • Bakeable to 450 degrees C
  • Electropolish finish standard


Custom Chambers & Manifolds

Nor-Cal Products has earned a reputation as a premier global manufacturer of high and ultra-high vacuum chambers. Find stand-alone chambers and assemblies including blank-off flanges, manipulators, viewports and more to meet your specific requirements.
Features
  • Aluminum chambers also available
  • Choice of stainless materials including 304, 304L, 316, and 316L
  • Surface treatments including glass bead finish, electropolish and chemical clean


A Trusted Custom Chamber Manufacturer

Nor-Cal Products uses the most up-to-date equipment and procedures for the manufacture and inspection of vacuum chambers. Every weld is leak checked with a helium mass spectrometer to insure leak rates of 1x10-9 mbar l/sec. or less. Mechanical inspection is accomplished with a coordinate measuring machine (CMM), copies of which are available on request. Uniform bakeout temperature is achieved by wrapping the associated system components in high temperature fiberglass materials.

Request a quote on our custom vacuum chamber parts or contact us online to learn more about our safety-tested systems and components.
