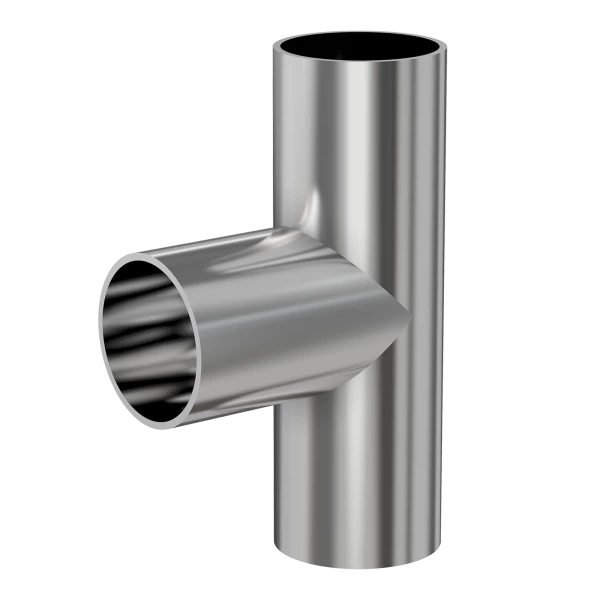

Tee Weld Fittings
Pfeiffer manufactures its vacuum tee weld fittings from tubing either through the pulled-port or bore-and-cope technique.
These are used to make standard flanged fittings as well as build-to-print custom manifolds where 90-branches of the same or a different diameter is required.
These are used to make standard flanged fittings as well as build-to-print custom manifolds where 90-branches of the same or a different diameter is required.
Tee Weld Fittings Features
- Alternate materials and custom designs possible
- Full size tees offer three flanged connections of equal size
- Reducer tees are constructed from a straight main vacuum line with one perpendicular smaller-diameter port
- Standard lengths and diameters.
Pfeiffer manufactures and provides a full line of flanges, fittings and adapters for vacuum applications. We offer ISO-KF (NW), ISO-K, ISO-F, CF (Conflat), ASA, Wire Seal and EVAC Chain Clamp style flanges and fittings to fit almost every application.
Custom flanges are available upon request.
We specialize in manufacturing components from 304 or 316 stainless steel with several items available in aluminum as well. Centering rings, gaskets, clamps, bolts and other hardware components are available to complete your project. We maintain a large inventory for prompt deliveries and to meet those unexpected demands.
Custom flanges are available upon request.
We specialize in manufacturing components from 304 or 316 stainless steel with several items available in aluminum as well. Centering rings, gaskets, clamps, bolts and other hardware components are available to complete your project. We maintain a large inventory for prompt deliveries and to meet those unexpected demands.
Pfeiffer Capabilities
Our team includes elite designers and engineers, who are dedicated to producing the highest quality, ISO 9001:2015-Certified Tee Weld Fittings to meet your application requirements. Our strong in-house standards and capabilities support the quality of our components and the services we provide, including:Partner with Pfeiffer for High-Quality Solutions
At Pfeiffer, we deliver premium vacuum components and solutions to customers across research, industrial, and OEM industries. When you partner with us, you gain access to our extensive inventory of high-quality vacuum components, as well as:- Dedicated sales support—speak directly with a real person at 800-824-4166.
- Fast quote turnaround
- 60+ years of industry experience
- Competitive pricing and reliable service
