Sample Transfer Systems w/Loadlock

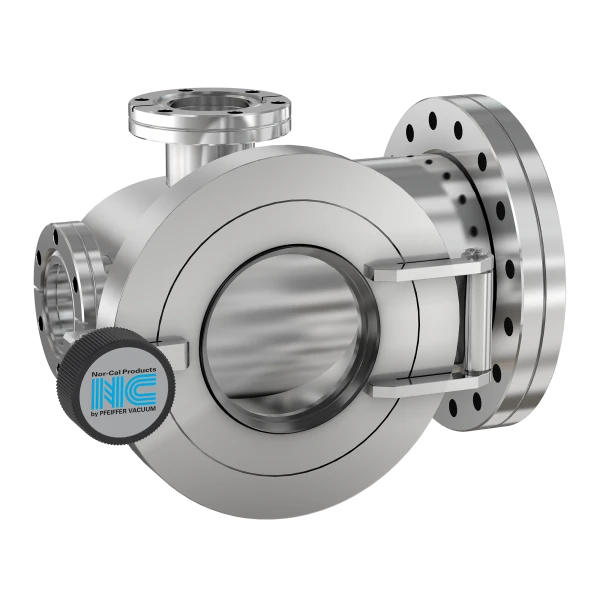

Pfeffer Vacuum Valves & Engineering's Sample Transfer System (STS) allows easy, forgiving sample transfer from a rotary/linear feedthrough positioned in a loadlock chamber to the sample dock mounted inside the vacuum chamber. Systems are available for sample sizes ranging from .5 to 3 inches, with custom sizes available upon request. Each STS system normally includes two platens, a transfer fork, and receiving dock customer fitted to interface with the user's specific vacuum system.
Sample Transfer Systems w/Loadlock Features
- 5 year guarantee
- Adapts to most goniometers and precision gearboxes
- Excellent sample plane repeatability
- Larger samples may be introduced through smaller ID tubing
- Transferable intrinsic direct heating
- Transferable thermocouple optional
Nor-Cal Products, Inc dba Pfeiffer Vacuum+Fab Solutions offers the researcher complimentary devices for sample transfer and positioning in ultra-high vacuum systems. Combined with our vacuum chambers, load locks, gate valves, all-metal valves, feedthroughs, viewports, and roughing accessories, we can provide a complete turn-key research system. Each standard component can readily be customized to meet our customer’s specific requirements, such as sample heating and cooling, special lengths, or stepper motor drivers. PV V&E's sample transfer and manipulation devices are made from the highest quality materials and lubricants to withstand repeated UHV bakeouts.
