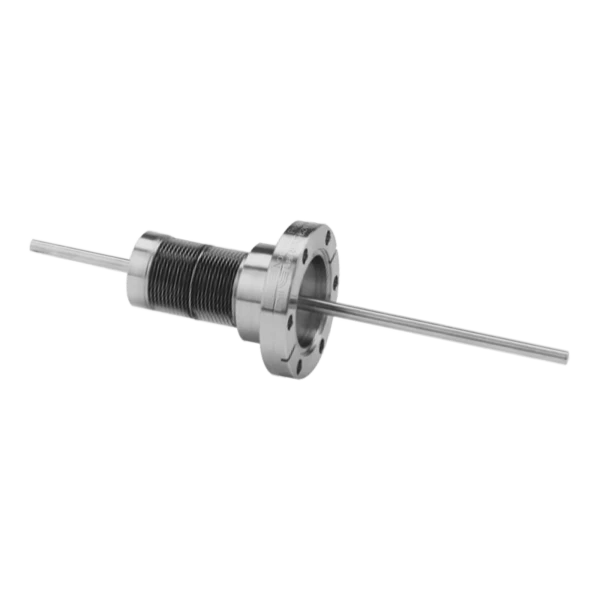

Z & Tilt Wobble Sticks
Our standard WBL Wobble Sticks feature all stainless steel construction and can be used in either high or ultra high vacuum environments. These products offer an efficient means of controlling Z axis movement as well as tilt movement at a very low cost.
Z & Tilt Wobble Sticks Features
- .5 to 2.75 inch linear travel
- Any mounting orientation
- CF and NW mounting flanges
- Elastomer seal maximum bakeout temperature 200°C
- Metal seal maximum bakeout temperature 450°C
- Tilt +/- 22-30°
Nor-Cal Products offers the researcher complimentary devices for sample transfer and positioning in ultra-high vacuum systems. Combined with our vacuum chambers, load locks, gate valves, all-metal valves, feedthroughs, viewports and roughing accessories, we can provide a complete turn-key research system. Each standard component can readily be customized to meet our customer’s specific requirements, such as sample heating and cooling, special lengths or stepper motor drivers. All of Nor-Cal Products’ sample transfer and manipulation devices are made from the highest quality materials and lubricants to withstand repeated UHV bakeouts.
