Differentially Pumped Rotary Seals

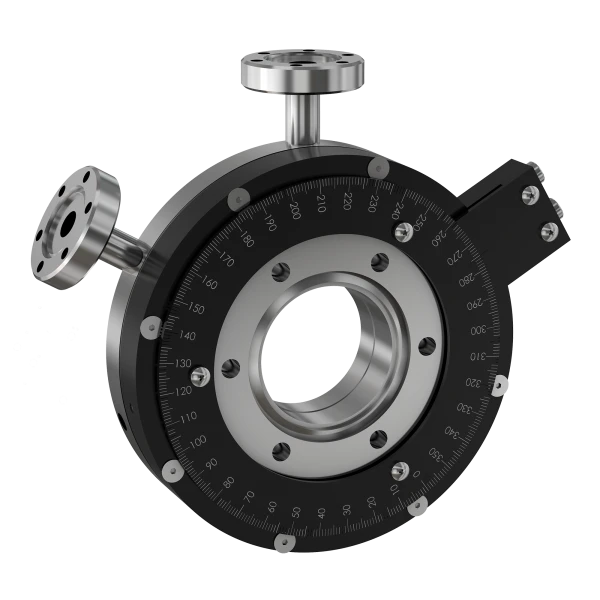

Differentially pumped rotary seals provide 360º of continuous rotation through the vacuum wall of a UHV system. They have two stages of differential pumping isolated by graphite-impregnated, expanded, Teflon seals on special sealing surfaces. A pre-loaded ball bearing set accurately controls the rotating stage position, allowing the unit to be successfully used with manipulators and other precision positioning devices. For easier and more accurate angle adjustment, a worm drive fine adjust option is available. Rotary seals are also available with an anti-backlash stepping or synchronous motor drive. Sizes up to 4 inch (101.6mm) ID are standard, while larger sizes are available on request.
Differentially Pumped Rotary Seals Features
- Flanges: CF, tapped holes, one rotational and one stationary
- Maximum bakeout of 150°C
- Motion: 360° rotation, two stage, differentially pumped with 360° Vernier scale
- Options: fine adjust worm drive “-W”, digital counters, stepper motors and other sizes available
- Vacuum range of ≥ 10⁻¹¹ mbar (UHV)
