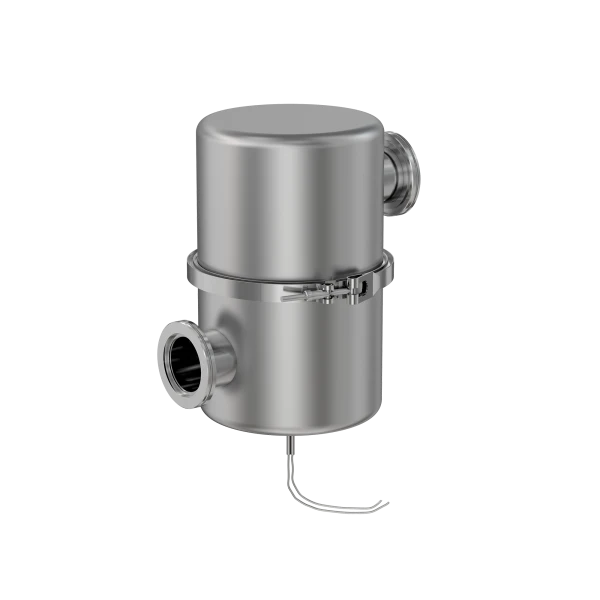

In-Line Molecular Sieve Trap

Part Number: FTM-4-1002-NWB
Price: $660.00
Quantity:


Features
  • Wide range of trap styles and techniques
  • Choose a trap for particles, moisture, condensable chemicals or any combination thereof
  • Call us at 800-842-4166 to learn more about foreline contamination management
NW-25 In-Line Molecular Sieve Trap, 4" Body
Technical Resources
Specifications
  • Trap Type: Molecular Sieve Trap
  • Molecular Sieve Material: Zeolite
  • Heater: 120V AC / 42 W
  • Port Orientation: Offset In-Line
  • Flange Size / Type: DN 25 ISO-KF
  • Trap Body Size: 4" OD
  • Body Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 180 °C
  • Weight: 4.75 lbs
In-Line-Molecular-Sieve-Traps-Dia
Imperial Units
Dim A: 6.20"
Dim C: 4"
Dim D: 7.30"
Dim E: 3.50"

Replacement Parts & Accessories

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
Body O-Rings
FT-4-OR
$16.50
Quantity:
Body Clamps
FT-4-CP
$49.50
Quantity:
Body Clamps
FT-CP-B
$11.00
Quantity:
