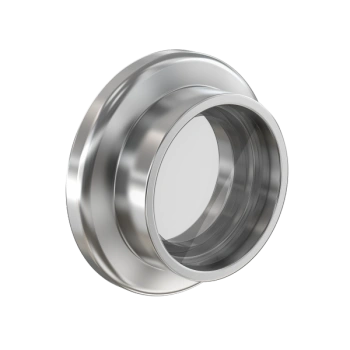

ISO-KF Viewports

Part Number: VP-NW-50
Price: $274.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free
NW-50 7056 Borosilicate Glass Viewport
Technical Resources
Specifications
  • Viewport Type: Welded Zero Length Viewport
  • Flange Size / Type: DN 50 Tube socket
  • Viewport Material: 7056 glass (Alkali Borosilicate)
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-9 mbar to 1 bar (high vacuum)
  • Temperature Range: -20 °C to 200 °C
  • Weight: 0.32 lbs
Viewport-Weld-Stubs-Dia
Imperial Units
Dim A: 1.51"
Dim B: 0.554"
