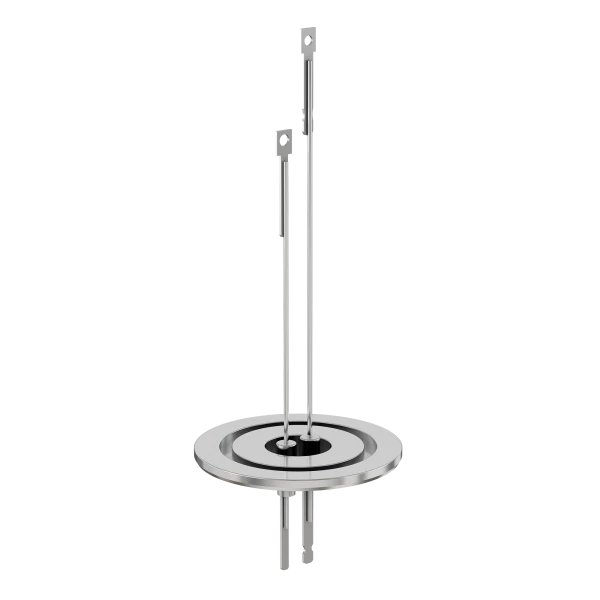

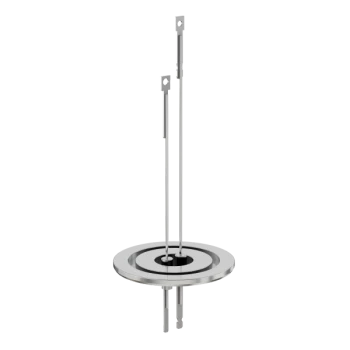

Thermocouple Feedthrough

Part Number: TC-NW-25-1
Price: $200.00
Quantity:

NW-25 Thermocouple Feedthrough (Type K)
Technical Resources
Specifications
  • Feedthrough Type: Thermocouple
  • Flange Size / Type: DN 40 ISO-KF
  • Thermocouple: Type K (yellow plug)
  • # Feedthroughs: One
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Weight: .5 lbs

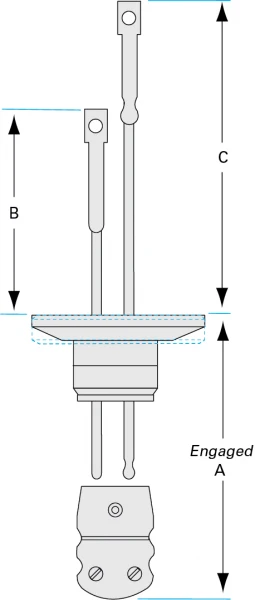

Thermocouple-Feedthroughs-Dia
Imperial Units
Dim A: .02"
Dim B: .38"
Dim C: .38"

Installation Hardware
