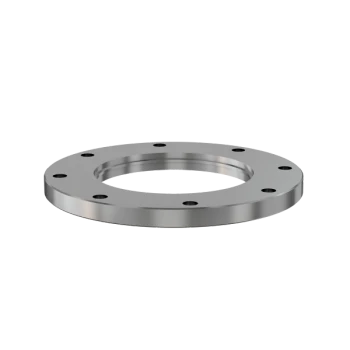

ISO-F Nonrotatable Flange

Part Number: ISO-250-1000N
Price: $386.00
Quantity:


Features
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Most common standard lengths and sizes listed
  • Many others available
  • Contact us at 800-824-4166 if you can't find exactly what you need
ISO-250 x 10" ID Bored Nonrotatable Flange
Technical Resources
Specifications
  • Flange Size: DN 250 ISO-F
  • Type: Bored
  • Material: 304 Stainless
  • Bore: 9.88"
  • Thickness: 0.630"
  • Bolt Circle: 12.2"
  • Bolt Hole Diameter: 0.438"
  • # Bolt Holes: 12
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 10.6 lbs
ISO-Nonrotatable-Fastener-Flanges-Dia-B
Imperial Units
Dim A: 13.2"
Dim B: 0.630"
Dim C: 9.88"
Dim D: 10.0"
Dim E: 0.375"
Dim F: 12.2"
Dim G: 0.438"
