ISO-K/ISO-F Centering Ring

Part Number: ISO-250-CR-AV
Price: $93.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-250 Centering Ring (Al) and Spacer Ring (Al) w/FKM O-ring
Technical Resources
Specifications
  • Product Type: Centering Ring Assembly
  • Fits Flange Size: DN 250
  • Weight: 0.28 lbs
  • Select Feature: with Spacer Ring
  • Seal Material: FKM
  • Centering Ring Material: Aluminum
  • Spacer Ring Material: Aluminum

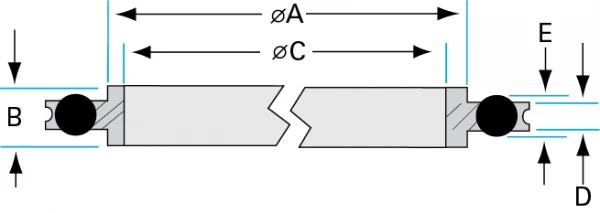

ISO-Aluminum-Centering-Rings-with-O-ring-Aluminum-Spacer-Dia-A
Imperial Units
Dim A: 10.3"
Dim B: 0.312"
Dim C: 10.1"
Dim D: 0.154"
Dim E: 0.210"
