Home / Motion & Manipulation / Wobble Sticks / Z & Tilt Wobble Sticks / Wobble Stick
Click to enlarge

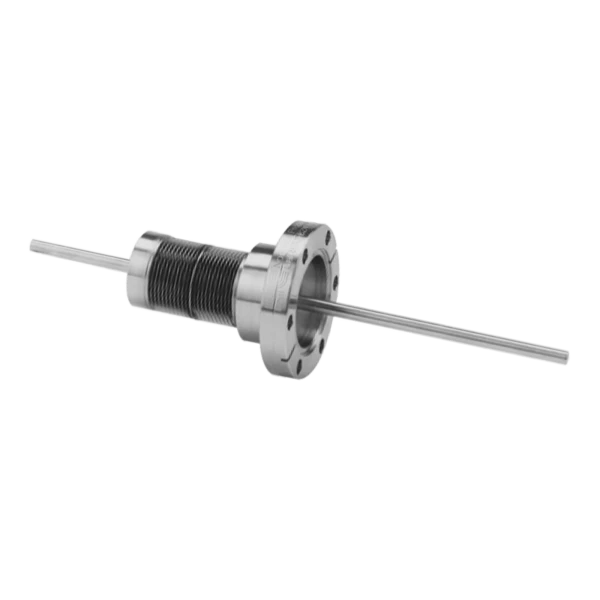

Wobble Stick

Part Number: WBL-133
Quantity:

1.33" OD CF Wobble Stick, 1/8" OD shaft, 1/2" Stroke
Technical Resources
Specifications
  • Wobble Stick Type: Tilt & Linear
  • Flange Size / Type: DN 16 CF (1.33" OD)
  • Linear Stroke: 1/2"
  • Feedthrough Shaft: 1/8" OD
  • Orientation: Any
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: 20 °C to 450 °C
  • Flange Material: 304 Stainless
  • Angular Motion: ±22° Tilt
  • Weight: 1 lbs
Wobble-Sticks-Dia
Imperial Units
Dim A: 6.00"
Dim B: 0.120"
Dim C: 3.00"
Dim D: 3.50"

Installation Hardware
