Home / Vacuum Viewports, Shutters & Doors / Viewport Shutters / Viewport Shutter
Click to enlarge
View CAD

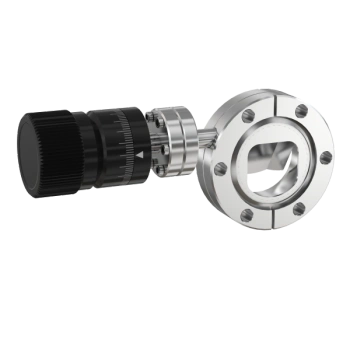

Viewport Shutter

Part Number: ZVS-150
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free
2.75" OD CF Viewport Shutter, 1.5" Tube
Technical Resources
Specifications
  • Viewport Shutter Type: Complete Shield
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • Flange & Shutter Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-20 °C to 150 °C
  • Weight: lbs

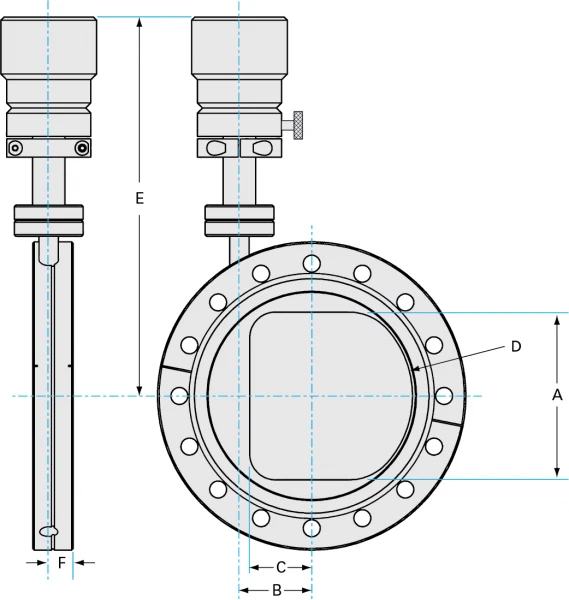

Viewport-Shutters-Dia
Imperial Units
Dim A: .12"
Dim B: .570"
Dim C: .420"
Dim D: .700"
Dim E: .99"
Dim F: .440"

Installation Hardware
