ISO-KF Medium Wall Flexible Hose Part Number: FH-150-20-2NW
Add to Quote
Features
Contact us at 800-824-4166 if you can't find exactly what you need Dampen out pump vibrations with a flex coupling Easily join two mis-aligned ports using a flex hose Standard lengths and flange combinations offered. Others available. Thin, medium and thick wall hoses offer a range of flexibility and robustness

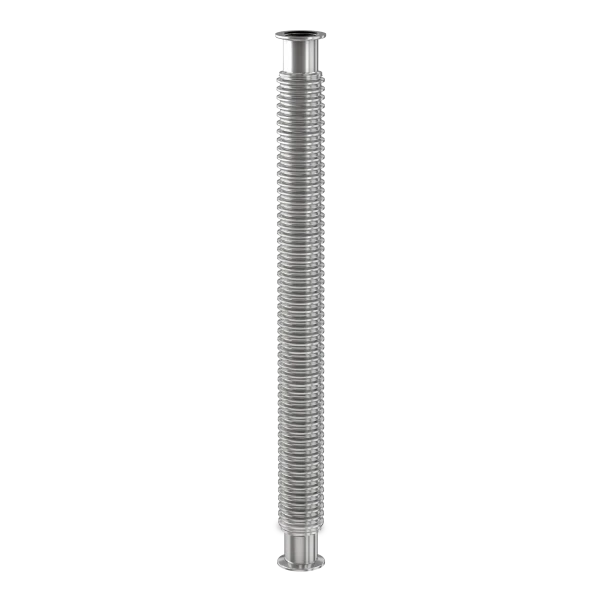

NW-40 Medium Wall SS Flexible Hose, 20" Length
Specifications
Flange Size: DN 40 ISO-KFType: Flexible Bellows HoseID: 1-1/2"Length: 20"Weight: 0.94 lbsHose Material: 316 or 321 SSFlange & Cuff Material: 304 SSVacuum Range: Elastomer Seal (HV): > 1 x 10ˉ ⁸ mbar to 1 barTemperature Range: Elastomer Seal (HV): -20°C to 150°CBend Radius: 2.3"
Imperial Units
Dim A: 20"Dim B: < 1.7"Dim C: > 1.5"Dim D: < 2.1"Dim E: 2.3"
Metric Units
Dim A: 508 mmDim B: 55.9 mmDim C: 1-1/2"Dim D: 52.3 mmDim E: 0.25 mm
