Weld Medium Wall Flexible Hose

Part Number: FH-150-12
Price: $142.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium and thick wall hoses offer a range of flexibility and robustness
1.5" ID Medium Wall SS Flexible Hose, 12" Length
Technical Resources
Specifications
  • Tube OD: 1-1/2"
  • Type: Flexible Bellows Hose
  • ID: 1-1/2"
  • Length: 12"
  • Wall Thickness: 0.010"
  • Bend Radius: 2.2"
  • Hose Material: 321 stainless
  • Cuff Material: 304 Stainless
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 0.42 lbs

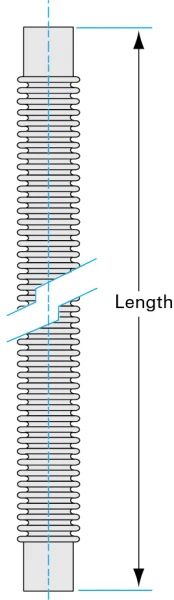

Flexible-Stainless-Steel-Hose-without-Flanges-Dia
Imperial Units
Dim A: 12"
Dim B: 2.2"
Dim C: 1-1/2"
Dim D: 2.06"
Dim E: 0.010"
