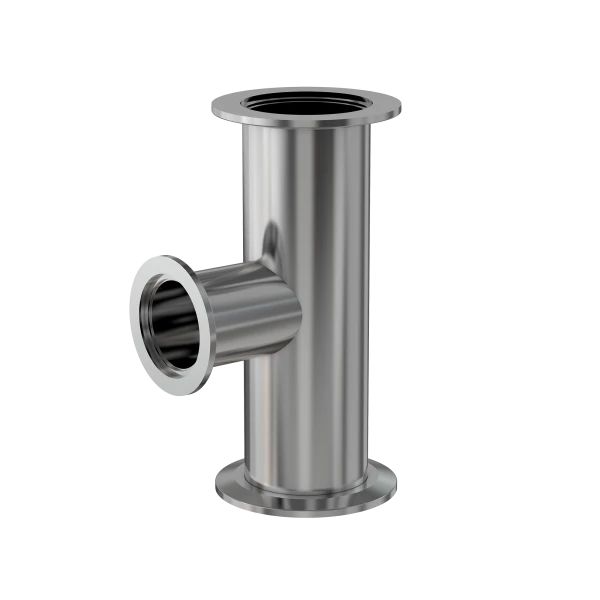

ISO-KF Reducer Tee

Part Number: 3TR-NW-40-16B
Price: $106.50
Quantity:


Features
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Most common standard lengths and sizes listed
  • Many others available, including a range of 316L material and preps for metric tubing
  • Contact us at 800-824-4166 if you can't find exactly what you need
NW-40 to NW-16 Reducer Tee
Technical Resources
Specifications
  • Flange Size: DN 40 ISO-KF
  • Tee Type: Reducer Tee
  • Flange 2: DN 16 ISO-KF
  • Material: 304 Stainless
  • Tube OD: 1-1/2"
  • Tube OD 2: 3/4"
  • Port Length: 2.40"
  • Port Length 2: 1.53"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.65 lbs
NW-Reducer-Tees-Dia
Imperial Units
Dim A: 2.40"
Dim B: 1.53"
