ISO-KF Centering Ring w/ O-Ring
Part Number: NW-16-CR-AV
- Contact us at 800-824-4166 if you can't find exactly what you need
- ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
- Many others available, including a range of 316L material and preps for metric tubing
- Most common standard lengths and sizes listed

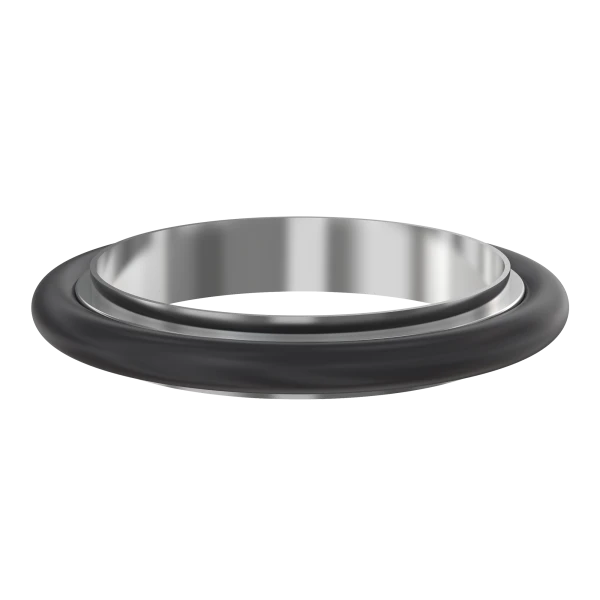

NW-16 Centering Ring (Al) w/FKM O-ring
- Product Type: Centering Ring Assembly
- Fits Flange Size: DN 16 ISO-KF
- Seal Material: FKM
- Weight: 0.007 lbs
- Select Feature: without Spacer Ring
- Centering Ring Material: Aluminum
Dim A: 0.669"
Dim B: 0.310"
Dim C: 0.625"
Dim D: 0.154"
Dim E: 0.210"
Dim A: 16.99 mm
Dim B: 7.87 mm
Dim C: 15.88 mm
Dim D: 3.91 mm
Dim E: 5.33 mm
