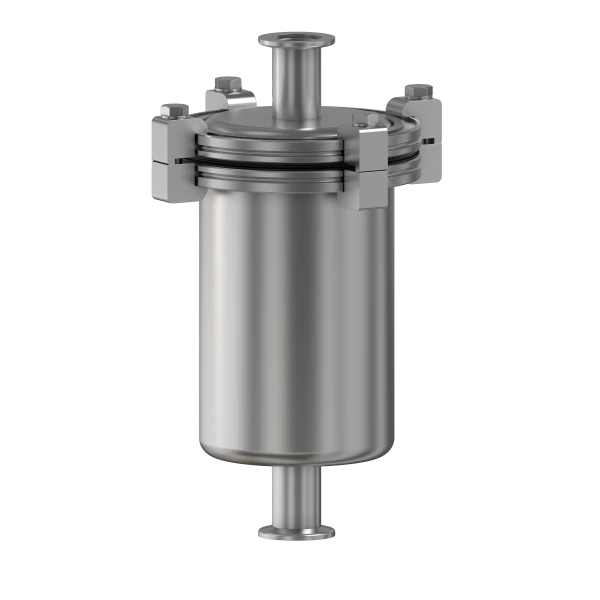

Stainless Steel Sieve Trap FCT-60511

Part Number: FCT-60511

Price: $965.00

Quantity:

Features

Metal sieve trap
Reduces hydrocarbon backstreaming from oil-sealed pumps
Traps particles and condensable vapors

Create a Custom Trap

Stainless Steel Sieve Trap, 6" In-line, KF50

Legacy Part No.: FCT-6-2002-NWB

Technical Resources

Specifications

Trap Type: Metal Sieve Trap
Sieve Material: Stainless Steel
Port Orientation: In-Line
Flange Size / Type: KF50
Body Material: 304 Stainless Steel
Nominal Body OD: 6" (100mm)
Weight: 10 lbs
Vacuum Range: > 1 x 10 ˉ ⁸ mbar to 1 bar
Temperature Range: -20 °C to 150 °C

Imperial Units

Dim A: 10.3"
Dim B: 8.8"
Dim C: 6"
