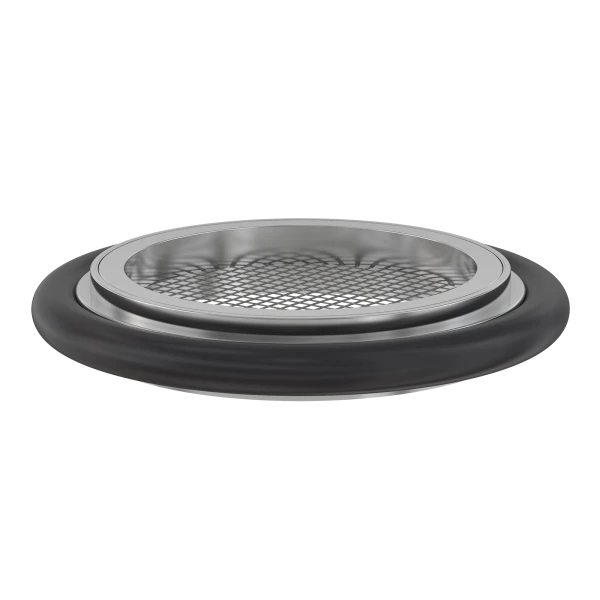

ISO-KF Centering Ring with Screen

Part Number: NW-40-CR-SV-74
Price: $41.00

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-40 Stainless Centering Ring w/Screen
Technical Resources
  • Product Type: Centering Ring Assembly
  • Fits Flange Size: DN 40 ISO-KF
  • Seal Material: FKM
  • Weight: 0.034 lbs
  • Select Feature: with Screen
  • Centering Ring Material: 304 Stainless
Imperial Units
Dim A: 1.61"
Dim B: 0.310"
Dim C: 1.57"
Dim D: 0.154"
Dim E: 0.210"
