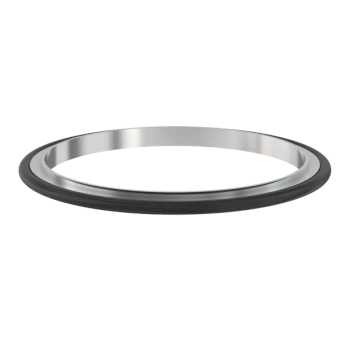

ISO-K/ISO-F Centering Ring

Part Number: ISO-63-CR-SV-316L
Price: $66.50
Quantity:


Features
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Most common standard lengths and sizes listed
  • Many others available
  • Contact us at 800-824-4166 if you can't find exactly what you need
ISO-63 Centering Ring (316L SS) and Spacer Ring (Al) w/FKM O-ring
Technical Resources
Specifications
  • Product Type: Centering Ring Assembly
  • Fits Flange Size: DN 63
  • Weight: 0.141 lbs
  • Select Feature: with Spacer Ring
  • Seal Material: FKM
  • Centering Ring Material: 316L stainless
  • Spacer Ring Material: Aluminum

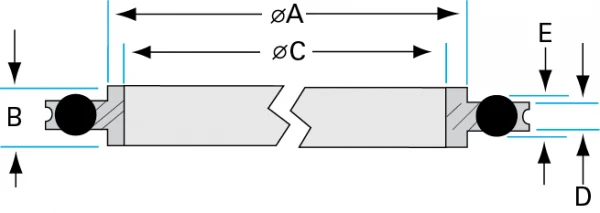

ISO-316L-Stainless-Steel-Centering-Ring-Dia
Imperial Units
Dim A: 2.74"
Dim B: 3.12"
Dim C: 2.63"
Dim D: 0.154"
Dim E: 0.210"
