ISO-K/ISO-F Centering Ring

Part Number: ISO-500-CR-AB
Price: $345.00
Quantity:


Features
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Most common standard lengths and sizes listed
  • Many others available
  • Contact us at 800-824-4166 if you can't find exactly what you need
ISO-500 Centering Ring (Al) and Spacer Ring (Al) w/Buna O-ring
Technical Resources
Specifications
  • Product Type: Centering Ring Assembly
  • Fits Flange Size: DN 500
  • Weight: 1.09 lbs
  • Select Feature: with Spacer Ring
  • Seal Material: Buna
  • Centering Ring Material: Aluminum
  • Spacer Ring Material: Aluminum

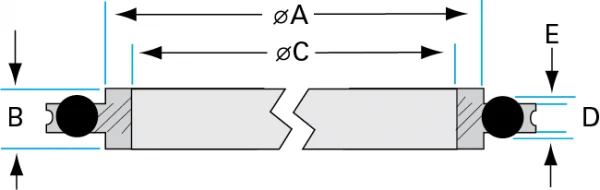

ISO-Aluminum-Centering-Rings-with-O-RIng-Aluminum-Spacer-Dia-B
Imperial Units
Dim A: 19.7"
Dim B: 0.550"
Dim C: 19.5"
Dim D: 0.224"
Dim E: 0.275"
