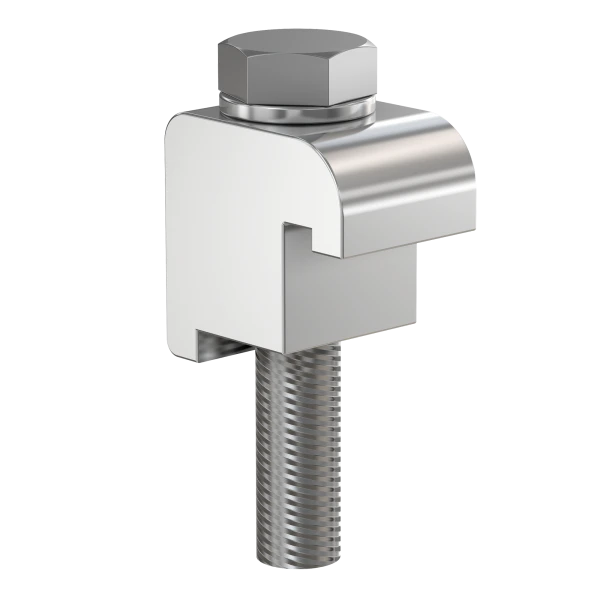

ISO-K/ISO-F Metric Single Claw Clamp ISO-250-SCP-M

Part Number: ISO-250-SCP-M

Price: $7.40
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-250 Single Claw Clamp, Metric
Specifications
  • Product Type: Single Claw Clamp
  • Fits Flange Size: DN 160/200/250 ISO-K
  • Clamp / Bolt Material: Aluminum, 18-8 Stainless Bolts
  • Weight: 0.088 lbs
  • Select Feature: Metric thread
ISO-Single-Claw-Clamp-Dia _ Rev 1.17.23
Imperial Units
Dim A: 1.10"
Dim B: 1.20"
Dim C: 0.400"
