ISO-K/ISO-F Centering Ring

Part Number: ISO-100-CR-AV
Price: $37.55
Quantity:


Features
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Most common standard lengths and sizes listed
  • Many others available
  • Contact us at 800-824-4166 if you can't find exactly what you need

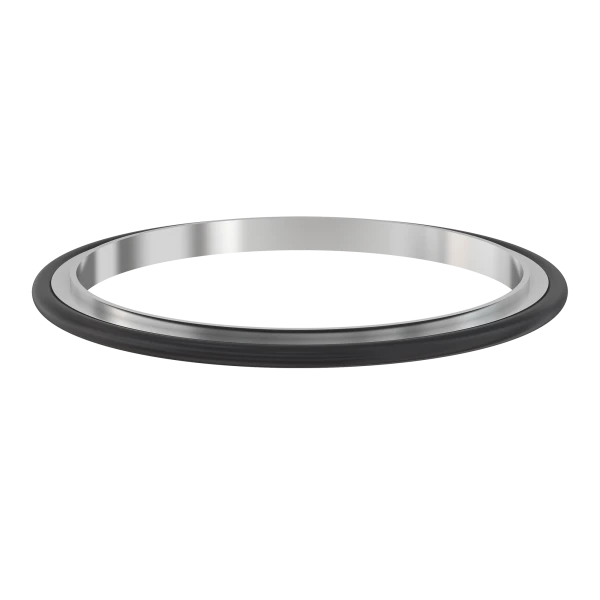

ISO-100 Centering Ring (Al) and Spacer Ring (Al) w/FKM O-ring
Technical Resources
Specifications
  • Product Type: Centering Ring Assembly
  • Fits Flange Size: DN 100
  • Weight: 0.11 lbs
  • Select Feature: with Spacer Ring
  • Seal Material: FKM
  • Centering Ring Material: Aluminum
  • Spacer Ring Material: Aluminum
ISO-Aluminum-Centering-Rings-with-O-ring-Aluminum-Spacer-Dia-A
Imperial Units
Dim A: 4.00"
Dim B: 0.312"
Dim C: 3.89"
Dim D: 0.154"
Dim E: 0.210"
