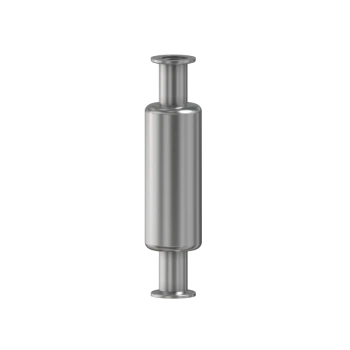

Sealed Stainless Steel Sieve Metal Trap CT-20211

Part Number: CT-20211

Price: $433.00
Quantity:


Features
Reduces hydrocarbon backstreaming from oil-sealed pumps
Sealed Metal Sieve Trap
Traps particles and condensable vapors
Create a Custom Trap
Sealed Stainless Steel Sieve Metal Trap, 2" In-line, KF16

Legacy Part No.: CT-2-0752-NWB
Specifications
Trap Type: Metal Sieve Trap
Sieve Material: Stainless Steel
Port Orientation: In-Line
Flange Size / Type: KF16
Body Material: 304 Stainless Steel
Nominal Body OD: 2" (50mm)
Weight: 4 lbs
Vacuum Range: > 1 · 10-8 mbar to 1 bar
Temperature Range: -20 °C to 150 °C

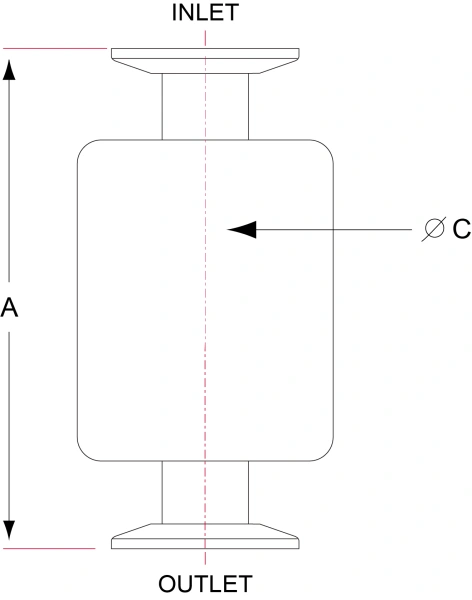

CT _ Trap Dim Dia
Imperial Units
Dim A: 8.4"
Dim C: 2"
