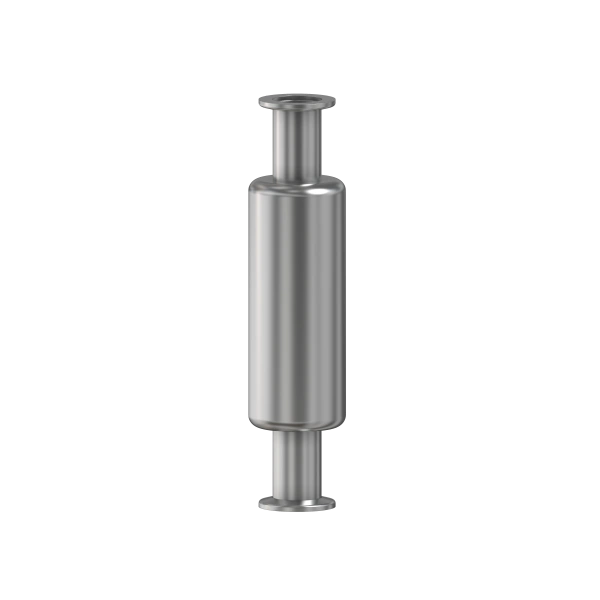

Sealed Stainless Steel Sieve Metal Trap CT-20211

Part Number: CT-20211
Price: $421.00
Quantity:


Features
  • Reduces hydrocarbon backstreaming from oil-sealed pumps
  • Sealed Metal Sieve Trap
  • Traps particles and condensable vapors
Create a Custom Trap
Sealed Stainless Steel Sieve Metal Trap, 2" In-line, KF16

Legacy Part No.: CT-2-0752-NWB
Specifications
  • Trap Type: Metal Sieve Trap
  • Sieve Material: Stainless Steel
  • Port Orientation: In-Line
  • Flange Size / Type: KF16
  • Body Material: 304 Stainless Steel
  • Nominal Body OD: 2" (50mm)
  • Weight: 4 lbs
  • Vacuum Range: > 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
CT _ Trap Dim Dia
Imperial Units
Dim A: 8.4"
Dim C: 2"

Have questions or need more information? Contact us today!

Discover the difference of partnering with Nor-Cal Products, Inc. dba Pfeiffer Vacuum Valves & Engineering. Call us at 1-800-824-4166 or contact by email at pvvesales.us@pfeiffer-vacuum.com. You can also fill out our contact form here or request a quote.
