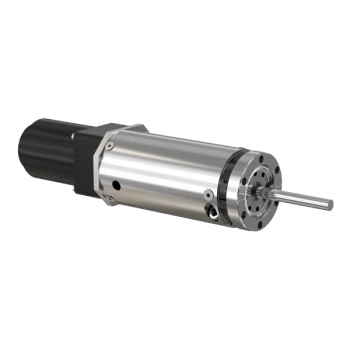

Rotary Motion Feedthrough

Part Number: MRRE-275-038

Quantity:

2.75" OD CF Motorized Rare Earth Magnetic Rotary Vacuum Feedthrough

Technical Resources

Specifications

Rotary Motion Feedthrough Type: Precision Motorized Actuation
Flange Size / Type: DN 40 CF (2.75" OD)
Linear Stroke: N/A
Feedthrough Shaft: 3/8" OD
Orientation: Any
Vacuum Range: 1 · 10^-10 mbar to 1 bar (UHV)
Temperature Range: 20 °C to 200 °C
Flange Material: 304 Stainless
Maximum Torque: 1.1 Nm (feedthrough); 0.35 Nm (motor)
Weight: 12 lbs

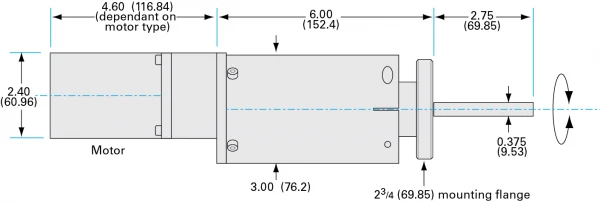

Rare-Earth-Magnetic-Rotary-Dia

Installation Hardware

CF Bolt Kit [KNP-200]
