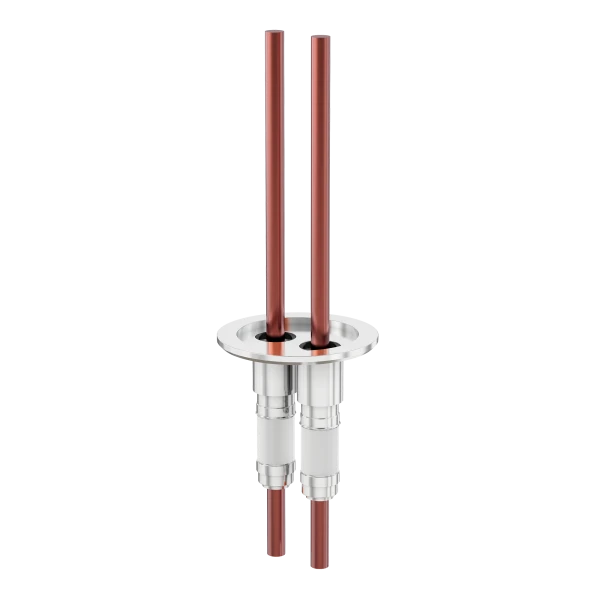

Water Cooled Power Feedthrough MCF-NW-50-2W

Part Number: MCF-NW-50-2W
Quantity:

NW-50 Water Cooled Medium Current Copper Feedthrough, Two Conductors
Technical Resources
Specifications
  • Power Feedthrough Type: Medium Current Feedthrough
  • # Conductors: Two
  • Conductor Material: OHFC Copper
  • Flange Size / Type: DN 50 ISO-KF
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Voltage Rating: 2 KV DC
  • Electrical Connector: CF-VC
  • Weight: .44 lbs
Medium-Current-Feedthroughs-Dia
Imperial Units
Dim A: .23"
Dim B: .03"
Dim C: .250"
Dim D: .00"
Dim E: .875"
