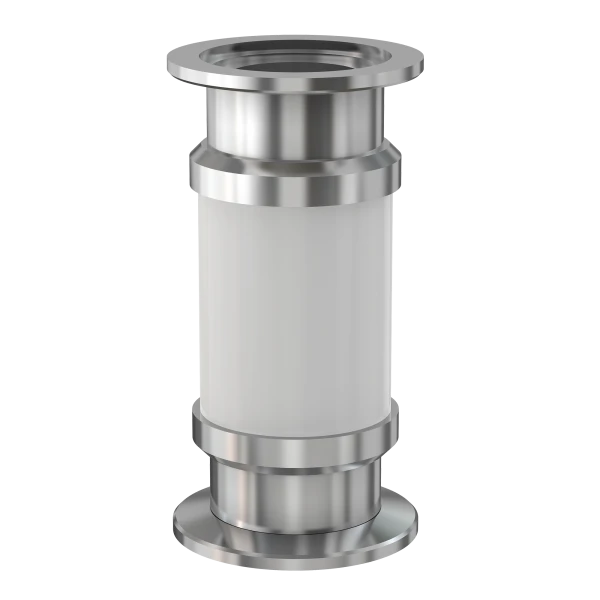

Ceramic Break Insulator

Part Number: HVI-NW-16-10
Price: $376.50
Quantity:

NW-16 High Voltage (10 KV) Insulator
Technical Resources
Specifications
  • Insulator Type: High Voltage
  • Flange Size / Type: DN 16 ISO-KF
  • Sleeve Material: Kovar
  • Insulator Material: Alumina Ceramic
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Voltage Rating: 5 KV
  • Weight: .25 lbs
Imperial Units
Dim A: .62"
Dim B: .00"
Dim C: .630"
Dim D: .33"
Dim E: .04"
Dim F: .750"
