CF Flexible Coupling Part Number: 2FC-075-2
Add to Quote
Features
Contact us at 800-824-4166 if you can't find exactly what you need Dampen out pump vibrations with a flex coupling Easily join two mis-aligned ports using a flex hose Standard lengths and flange combinations offered. Others available. Thin, medium and thick wall hoses offer a range of flexibility and robustness

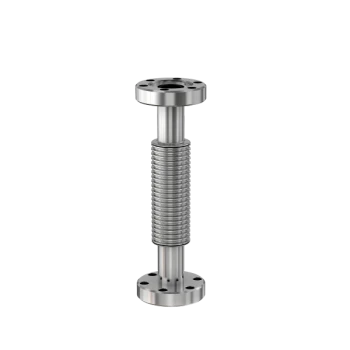

1.33" OD CF Flexible Coupling, 4.2" Free Length
Specifications
Flange Size: DN 16 CF (1.33" OD)Type: Flexible CouplingID: 1/2"Length: 4.2"Wall Thickness: 0.006"Hose Material: 321 stainlessFlange & Cuff Material: 304 StainlessVacuum Range: FKM: 1 · 10-8 mbar to 1 bar-13 mbar to 1 barTemperature Range: FKM: -20 °C to 180 °CWeight: 0.3 lbs
Imperial Units

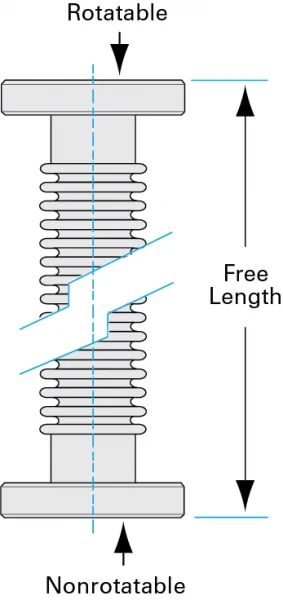

Dim A: 4.2"Dim B: 3.8"Dim C: 1/2"Dim D: 49Dim E: 0.006"
Metric Units
Dim A: 106.7 mmDim B: 96.5 mmDim C: 1/2"Dim D: 49Dim E: 0.15 mm
