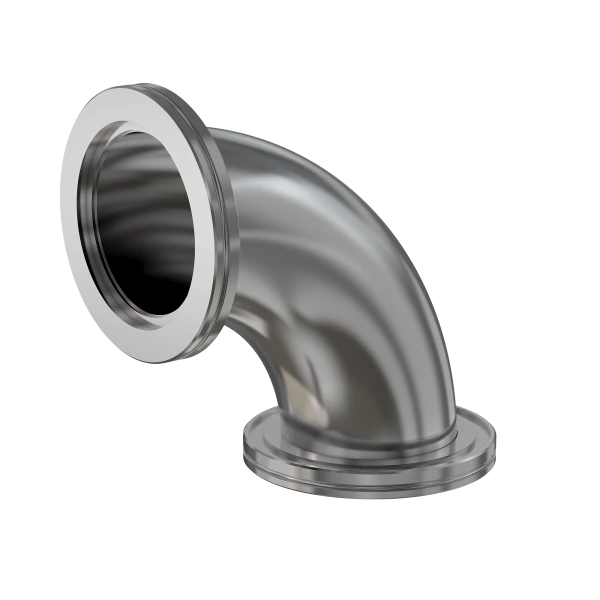

ISO-K 90 Redius Elbow

Part Number: 2E-ISO-250-OF
Price: $1,439.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-250 OF 90 Degree Radius Elbow
Technical Resources
Specifications
  • Flange Size: DN 250 ISO-K
  • Elbow Type: Radius 90 Degree
  • Material: 304 Stainless
  • Tube OD: 10"
  • Port Length: 15.4"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 11.5 lbs
ISO-90-Degree-Radius-Elbows-Dia
Imperial Units
Dim A: 15.4"
Dim B: 15.0"

Installation Hardware
