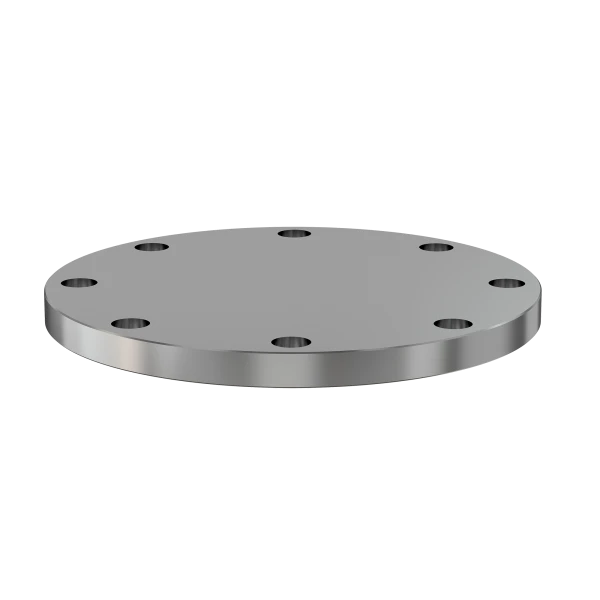

ASA Blank Nonrotatable Flange

Part Number: ASA-6-000N

Price: $287.50

Quantity:

Features

All products are available with both genders or a combination
Contact us at 800-824-4166 if you can't find exactly what you need
One each flat and grooved flange is needed to complete a connection

6" OD Blank Nonrotatable ASA Flange

Technical Resources

Product Spec Sheet

Specifications

Flange Size: DN 2 (6" OD)
Type: Non-rotatable
Gender: Flat
Material: 304 Stainless
Bore: Blank
Thickness: 0.500"
Bolt Circle: 4.75"
Bolt Hole Diameter: 0.750"
# Bolt Holes: 4
Vacuum Range: 1 · 10^-8 mbar to 1 bar
Temperature Range: -20 °C to 150 °C
Weight: 3.8 lbs

ASA-Flanges-5-to-9-Inches-Dia-1

Dim A: 6.00"
Dim B: 0.500"
Dim C: Blank
Dim F: 4.75"
Dim G: 0.750"

Installation Hardware
