ASA Rotatable Flange

Part Number: ASA-16-1200R-G
List Price: $1,086.00
List Price: $1,086.00
Price: $1,086.00
Quantity:


Features
  • All products are available with both genders or a combination
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • One each flat and grooved flange is needed to complete a connection
16" OD X 12" ID Rotatable ASA Flange w/Groove Kit
Technical Resources
Specifications
  • Flange Size: DN 10 (16" OD)
  • Type: Rotatable
  • Gender: with Groove
  • Material: 304 Stainless
  • Bore: 11.9"
  • Thickness: 0.750"
  • Bolt Circle: 14.3"
  • Bolt Hole Diameter: 0.812"
  • # Bolt Holes: 12
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 18.2 lbs

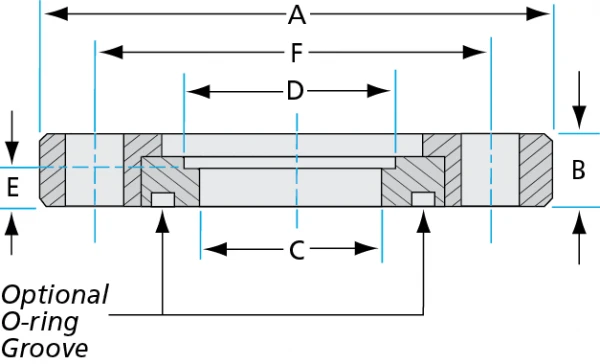

ASA-Flanges-11-to-16-Dia-4
Imperial Units
Dim A: 16.0"
Dim B: 0.750"
Dim C: 11.9"
Dim D: 12.0"
Dim E: 12.0"
Dim F: 14.3"
Dim G: 0.812"

Installation Hardware
