ASA Rotatable Flange

Part Number: ASA-13.5-1000R
Quantity:


Features
  • All products are available with both genders or a combination
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • One each flat and grooved flange is needed to complete a connection
13.5" OD X 10" ID Rotatable ASA Flange Kit
Technical Resources
Specifications
  • Flange Size: DN 8 (13.5" OD)
  • Type: Rotatable
  • Gender: Flat
  • Material: 304 Stainless
  • Bore: 9.88"
  • Thickness: 0.750"
  • Bolt Circle: 11.8"
  • Bolt Hole Diameter: 0.812"
  • # Bolt Holes: 8
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 13.5 lbs

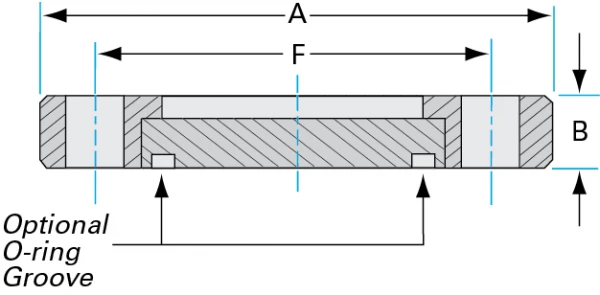

ASA-Flanges-11-to-16-Dia-2
Imperial Units
Dim A: 13.5"
Dim B: 0.750"
Dim C: 9.88"
Dim D: 10.0"
Dim E: 0.375"
Dim F: 11.8"
Dim G: 0.812"
