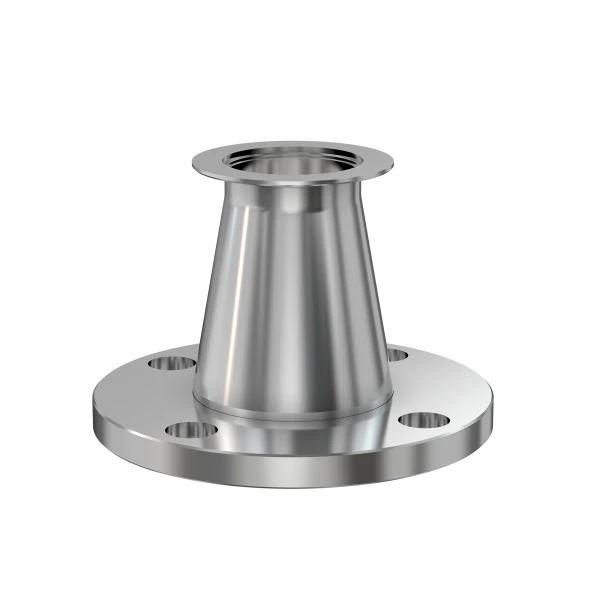

ISO-KF to ASA Conical Adapter Nipple

Part Number: ANC-NW-40-ASA-6

Price: $433.00
Quantity:

Specifications
Flange 1: DN 40 ISO-KF
Adapter Type: Conical Adapter
Flange 2: DN 2 (6" OD)
Material: 304 Stainless
Tube OD: 1-1/2"
Tube OD 2: 3"
Port Length: 4.03"
Vacuum Range: 1 · 10-8 mbar to 1 bar
Temperature Range: -20 °C to 150 °C
Weight: 3.5 lbs
Manufacturer: Pfeiffer Vacuum+Fab Solutions
NW-40 to 6" OD ASA Conical Adapter Nipple
Technical Resources
NW-to-ASA-Conical-Adapter-Nipples-Dia
Imperial Units
Dim A: 4.03"

Features
Contact us at 800-824-4166 if you can't find exactly what you need
Enables easy joining of two different flanges or fittings
Most popular types & combinations listed
