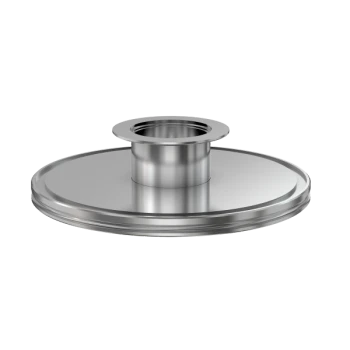

ISO-KF to ISO-K Straight Adapter Nipple

Part Number: AN-NW-40-ISO-100-OF
Price: $320.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
NW-40 to ISO-100 OF Straight Adapter Nipple
Technical Resources
Specifications
  • Flange 1: DN 40 ISO-KF
  • Adapter Type: Straight Adapter
  • Flange 2: DN 100 ISO-K
  • Material: 304 Stainless
  • Tube OD: 1-1/2"
  • Port Length: 1.75"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 2.8 lbs

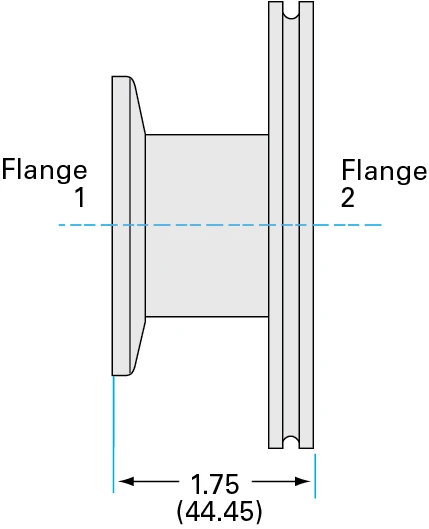

NW-to-ISO-Adapter-Nipples-Dia
Imperial Units
Dim A: 1.75"

Installation Hardware
