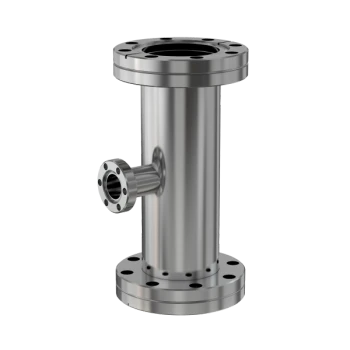

CF Reducer Tee

Part Number: 3TR-200-150
Price: $363.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
2.75" OD-to-3.38" OD CF Reducer Tee
Technical Resources
Specifications
  • Flange Size: DN 50 CF (3.38" OD)
  • Tee Type: Reducer Tee
  • Flange 2: DN 40 CF (2.75" OD)
  • Material: 304 Stainless
  • Tube OD: 2"
  • Tube OD 2: 1-1/2"
  • Port Length: 3.22"
  • Port Length 2: 2.71"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 3.2 lbs

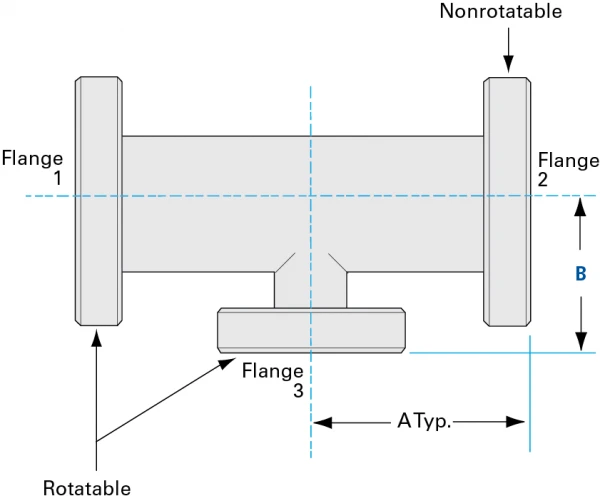

CF-Reducer-Tees-Dia
Imperial Units
Dim A: 3.22"
Dim B: 2.71"
