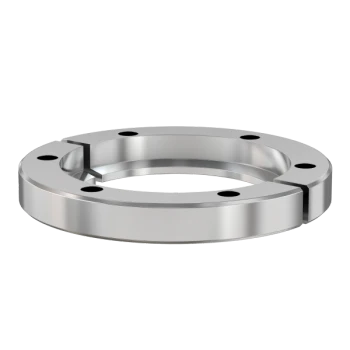

ISO-KF Bulkhead Clamp

Part Number: NW-25-BCP
Price: $24.00
Quantity:


Features
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Most common standard lengths and sizes listed
  • Many others available, including a range of 316L material and preps for metric tubing
  • Contact us at 800-824-4166 if you can't find exactly what you need
NW-25 Bulkhead Clamp Kit, Includes six 10-32 Bolts
Technical Resources
Specifications
  • Product Type: Bulkhead Clamp
  • Fits Flange Size: DN 25 ISO-KF
  • Clamp Material: Aluminum, 18-8 Stainless Bolts
  • Weight: 0.14 lbs
  • Select Feature: UNF thread

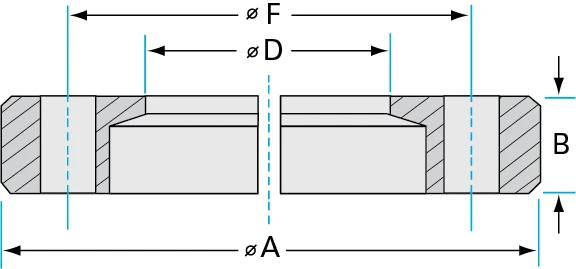

NW-Bulkhead-Clamp-Kits-Dia
Imperial Units
Dim A: 2.37"
Dim B: 0.387"
Dim D: 1.26"
Dim G: 10-32
