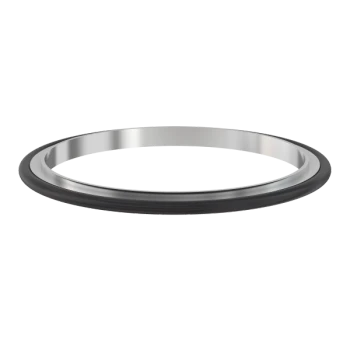

ISO-K/ISO-F Centering Ring

Part Number: ISO-160-CR
Price: $82.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-160 Centering Ring (SS) w/FKM O-ring
Technical Resources
Specifications
  • Product Type: Centering Ring Assembly
  • Fits Flange Size: DN 160
  • Weight: 0.26 lbs
  • Select Feature: without Spacer Ring
  • Seal Material: FKM
  • Centering Ring Material: 304 Stainless
Imperial Units
Dim A: 6.01"
Dim B: 0.550"
Dim C: 5.90"
Dim D: 0.224"
Dim E: 0.275"
