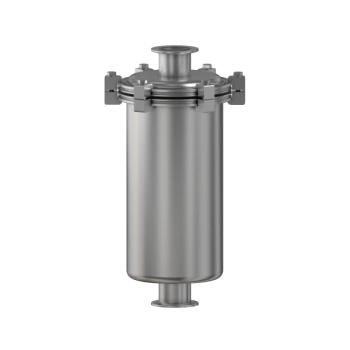

KF40 Particle Trap

Part Number: FTPS-60413

Price: $1,460.00
Quantity:

Create a Custom Trap
Specifications
Lead Time: 5-6 Weeks
Trap Type: Particle Trap
Sieve Material: Polyester
Seal Material: FKM
Port Orientation: In-Line
Flange Size / Type: KF40
Body Material: 304 Stainless Steel
Nominal Body OD: 6" (150mm)
Weight: 13 lbs
Vacuum Range: > 1 x 10 ˉ ⁸ mbar to 1 bar
Claw Clamps: Aluminum
Manufacturer: Pfeiffer Vacuum+Fab Solutions
Temperature Range: -20°C to 150°C
  • Particle Trap, 6" In-line, KF40, Polyester
  • In-line body configurations
  • Particle trap with polyester sieve
  • Reduces hydrocarbon backstreaming from oil-sealed pumps
  • Traps particles and condensable vapors

Legacy Part No.: FTPS-6-1502-NWB

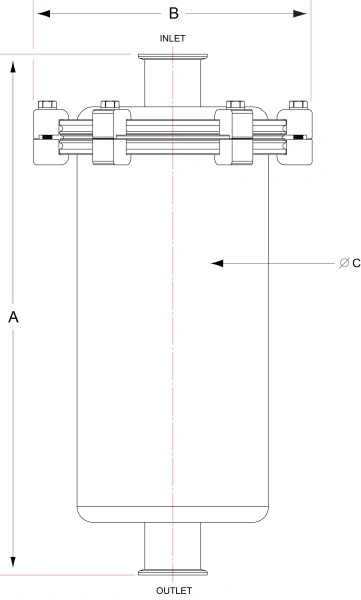

FTPS 1 Diagram
Imperial Units
Dim A: 16.3"
Dim B: 8.8"
Dim C: 6"
