Home / Vacuum Feedthroughs / LN2 Vacuum Feedthroughs / Dual Tube LN2 Feedthroughs / Liquid Nitrogen (LN2) Feedthrough
Click to enlarge
View CAD

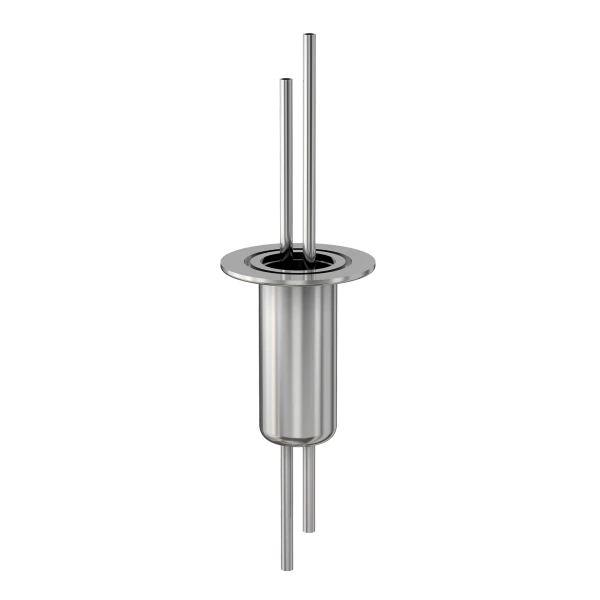

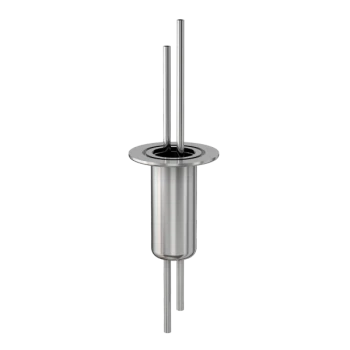

Liquid Nitrogen (LN2) Feedthrough

Part Number: LNF-NW-40-2-025
Price: $551.00
Quantity:

NW-40 Dual Liquid Nitrogen Feedthrough, 1/4" OD Tube
Technical Resources
Specifications
  • Feedthrough Type: Liquid Nitrogen
  • Flange Size / Type: DN 40 ISO-KF
  • # Feedthroughs: Two
  • Feedthrough Tube Termination: 1/4" OD Tube
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Weight: .75 lbs
Dual-Liquid-Nitrogen-Feedthroughs-Dia
Imperial Units
Dim A: .50"
Dim B: .50"
Dim C: .50"
Dim D: .50"
Dim E: .250"

Installation Hardware
